Home Switch Push button switch Metal Push Button Switch 12mm diameter momentary metal push button switch

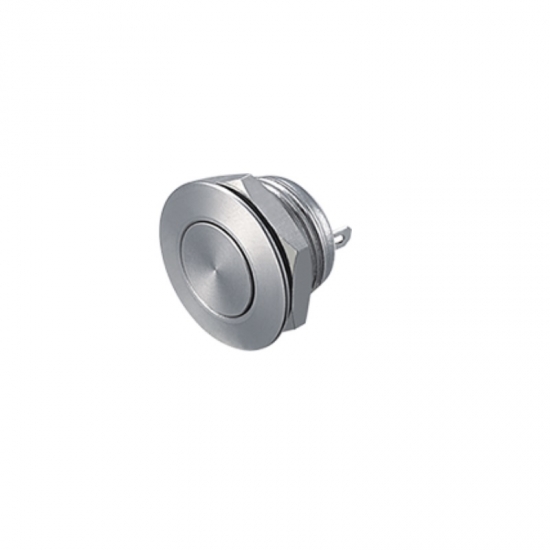

12mm diameter momentary metal push button switch

Rating: DC12V 50mA IP67 waterproof IK08 collision avoidance

  • Brand:

    Gangyuan
  • Item NO.:

    HBDGQ12SF-10W
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-15 working days after payment
  • Product Detail

Waterproof IP67 metal push button switch factory/ manufacture


 Basic Information


Mounting Hole Size     12mm
Front Shape Flat and Round
Operating Stroke 0.5mm
Switch Rating DC12V 50mA
Contact Configuration 1 NO
Operating Type Momentary
Electrical Life ≥50,000 cycles
Operating Temperature -40℃~80℃
Operating Pressure 3~5N
Shell Material                             Nickel-plated Brass/ Stailess Stell

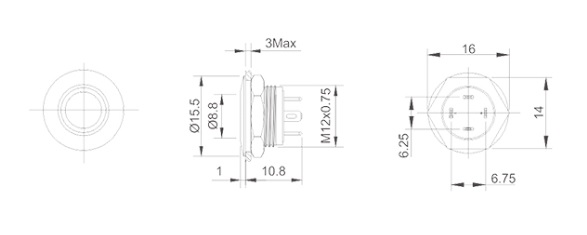

Dimension

12mm metal push button switch


 Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Application


Our Metal Push Button Switch are beautiful and novel, compact in structure, fast-moving contacts, long life, high reliability, convenient installation, and are favored by users. They are suitable for application fields such as transmission and distribution network, mechanical equipment, urban transportation, new energy, etc.


  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
