Home Switch Tactile switch IP67 Silicone knob tactile switch SMD type

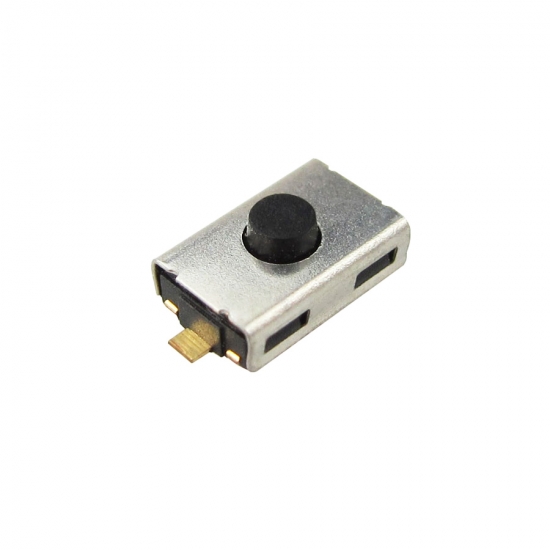

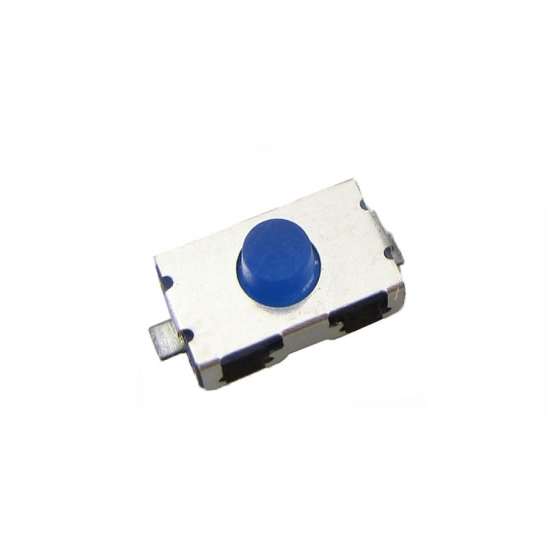

IP67 Silicone knob tactile switch SMD type

3×6 SMD Rubber actuator tactile switch meet IP67 waterproof level.Salt mist 48h.operation force 100,000 cycles

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441F
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black/bule
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



IP67 Silicone knob tactile switch


Feature:

  • Saves PCB space
  • Operation force:130±30gf
  • Rubber actuator
  • RoHS compliant and compatible
  • Support Au plating



General characteristic:

Operation Temperature

 -20℃~70℃

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Salt Mist

48h±1h

Operation force

130±30gf

Operation life

100,000 cycles

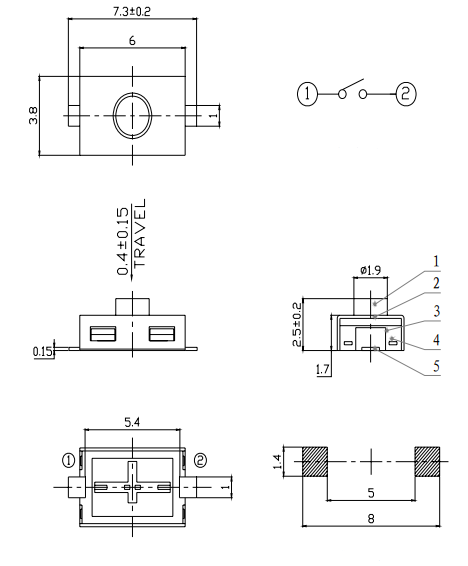

silicone tactile switch Drawing:



NO. NAME MATERIAL FINISHING
1     STEM RUBBER BLACK
2 COVER SUS 301
3 CONTACT SUS301 3/4H Silver plating
4 CASE FR52 Black
5 TERMINAL C5191 Silver plating


Advantage

Gangyuan electronics focus on scientific management, adhere to the continuous innovation for customers continue to create value, focus on industry products, technological innovation and efficient manufacturing, automation to achieve more than 85 percent of manufacturing coverage. Companies in the precision of small plastic hardware components have a breakthrough technological advantages, to adapt to electronic products "fast, precison" technology trends, the tactile switch products in the application of the problem-solving capacity, the company "rapid response + full Quality "capacity of the comprehensive embodiment. We work closely with many industry benchmarking customers to understand customer needs as early as possible, with customers to quickly achieve product development and production shipments to meet the electronics industry needs to quickly update the iteration.
