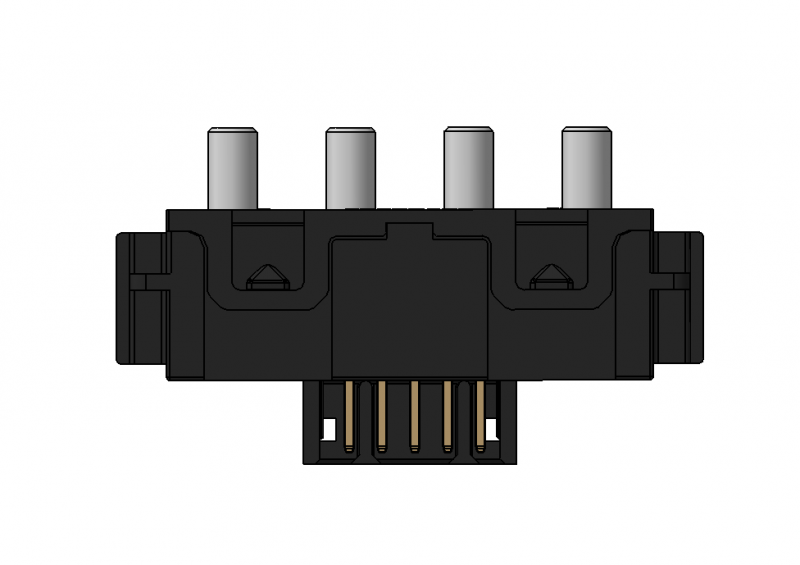

Home Switch Detector Switches 4 bit push white button detector switches

4 bit push white button detector switches

Detector Switches are used to “detect” internal mechanical movements and convert human manual operations, such as the opening of a door , to electronic signals.

  • Brand:

    Gangyuan
  • Item NO.:

    PB21HA04
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

 1P1T switch SPST-NO Micro Mini Side Actuated Detect Switches

10MA 5V switch detector for printer


 Detector switch datasheet

Ratings: 100μA,3VDC ~ 10mA 5VDC

Function : 3 - 1P1T

Contact Resistance: 100mΩ Max

Insulation Resistance: ≥100MΩ

Operating Force: 80 ±20 gf

Mechanical life: 150000 cycles

Electrical life: 100000 cycles

Operating Temperature Range: -20℃~65℃

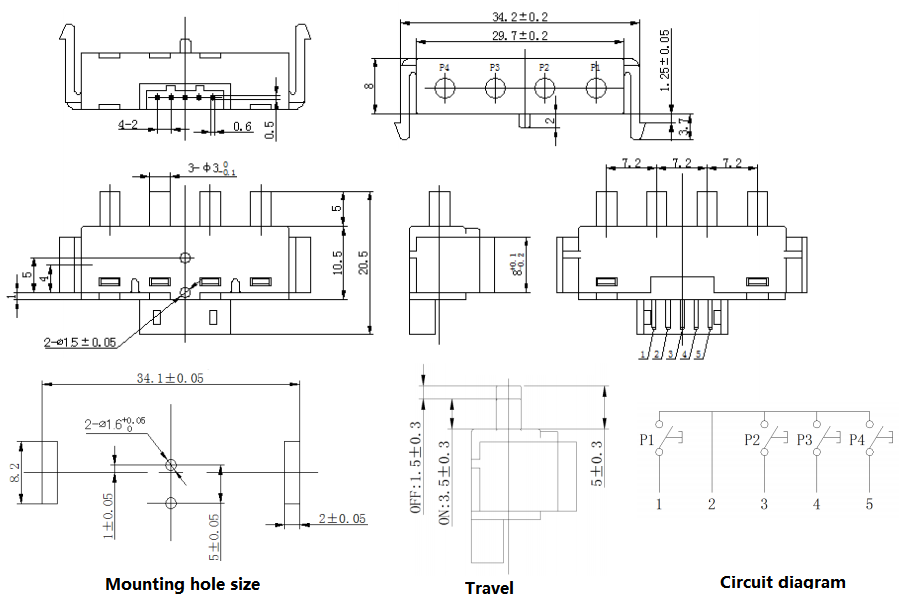

 Installation Specification

 Features

Wide range of customizable features including operational directions

Wide available range for refl ow soldering

Light operating force


 Typical Applications

• Consumer electronics • Medical devices • Safety control devices
