Home Switch Detector Switches 4 terminal smd detector switches manufacturer super mini

4 terminal smd detector switches manufacturer super mini

4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.

  • Brand:

    Gangyuan
  • Item NO.:

    KS01101
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Product Item:

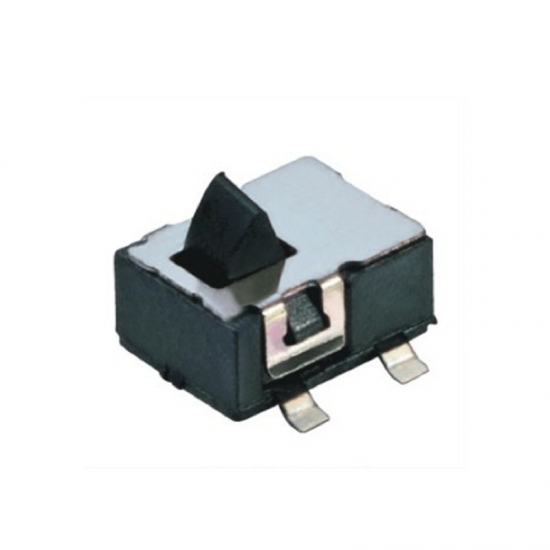

4 terminal smd detector switches manufacturer super mini size.


Feature:

Model Name:

SMD detector switch

Model No.:

KS01101

Dimension:

3.6x4.75x3.75MM

Operating force:

30+-20gf

Life cycles:

100,000Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Contact resistance:

150m Ω max.

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Full travel :

0.3±0.2mm

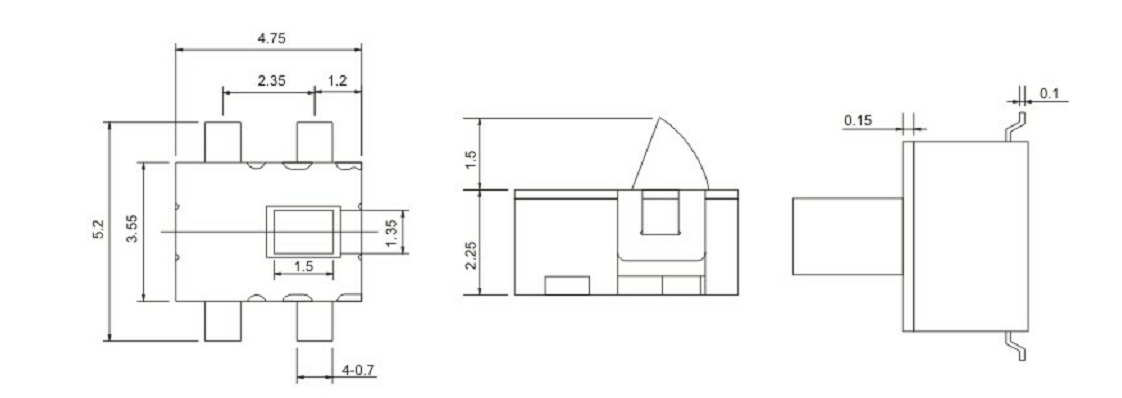

Dimension:


Application:

Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
