Ultra-thin film tact switch supplier

Our tact switches offer superior quality, can be adjusted to your application requirements, and are available in different operating forces.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0543A-C-14
  • Order(MOQ):

    5000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    White and yellow
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

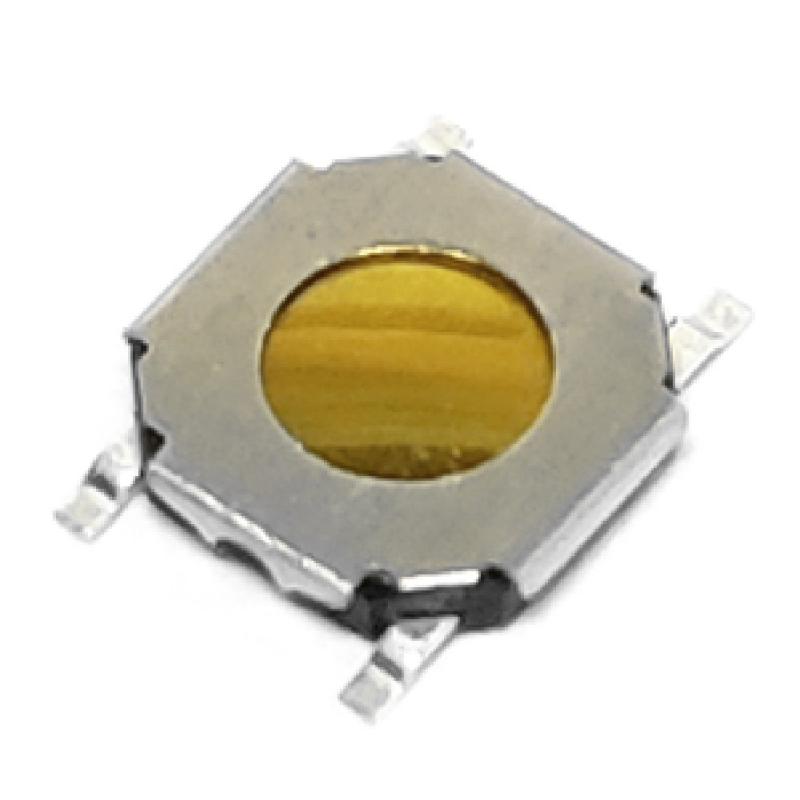

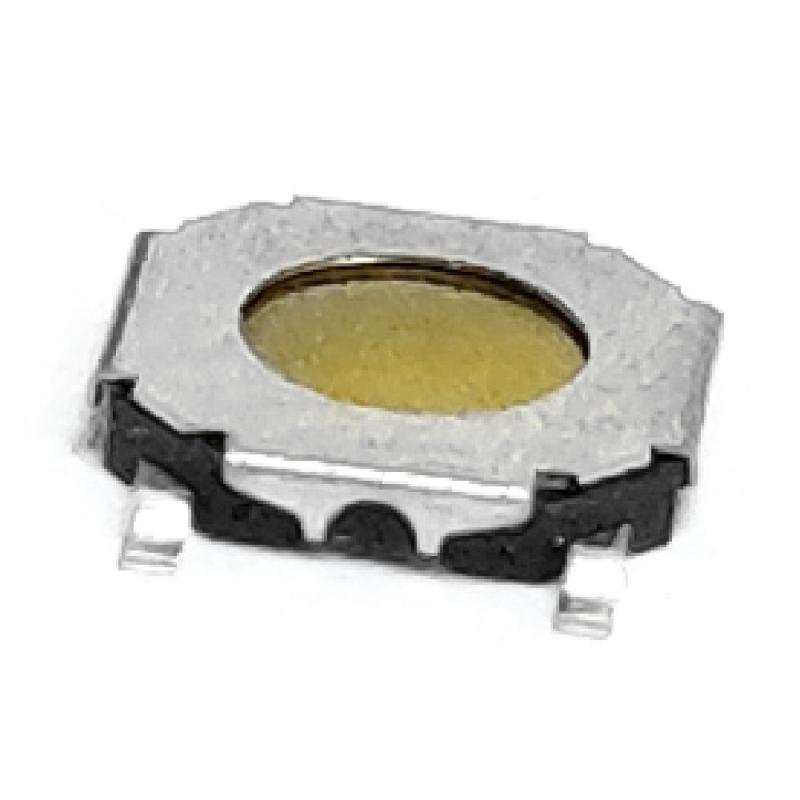

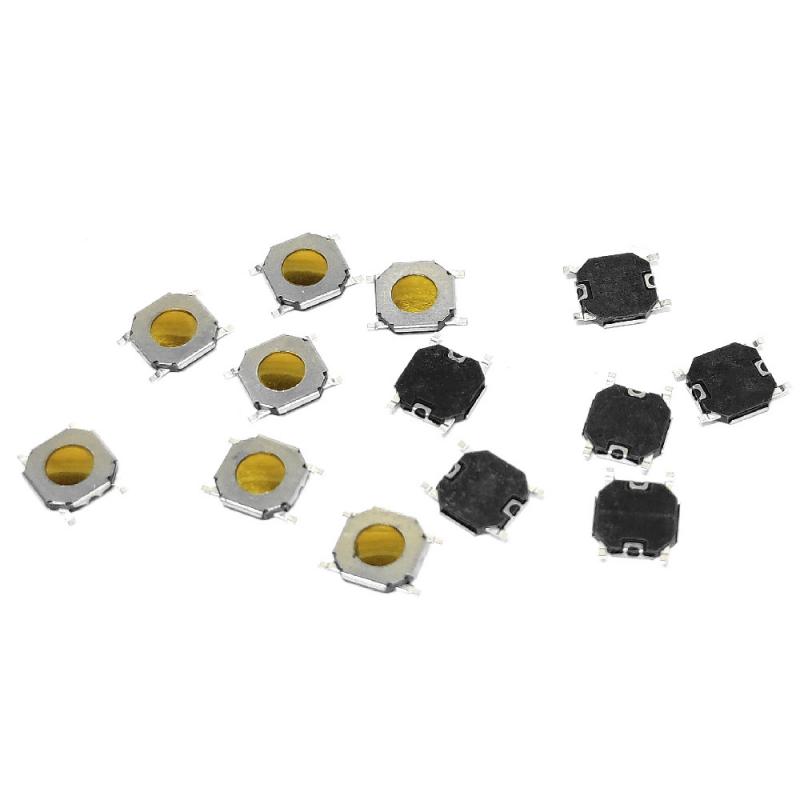

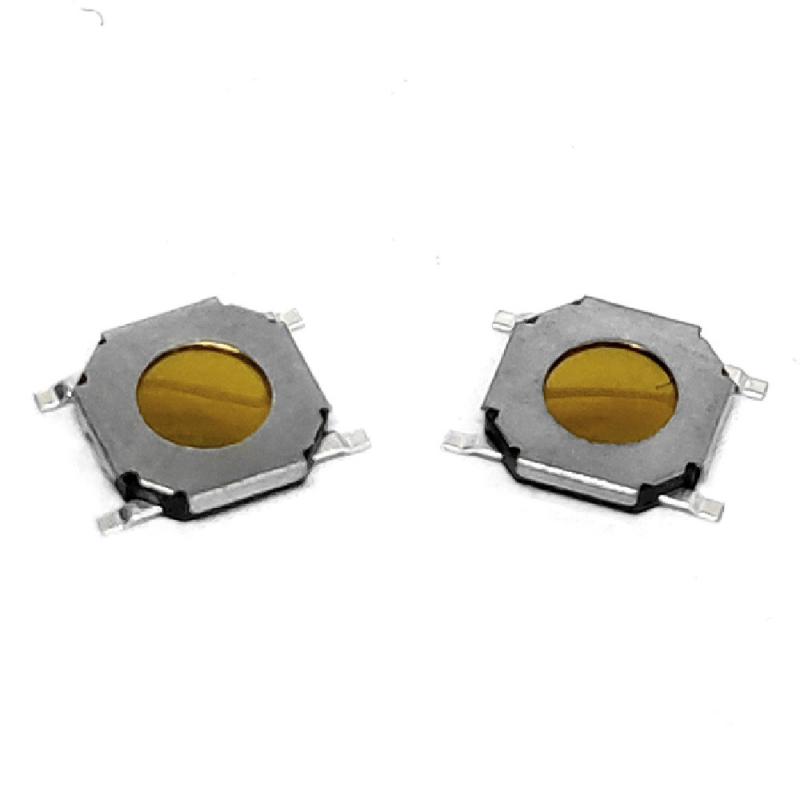

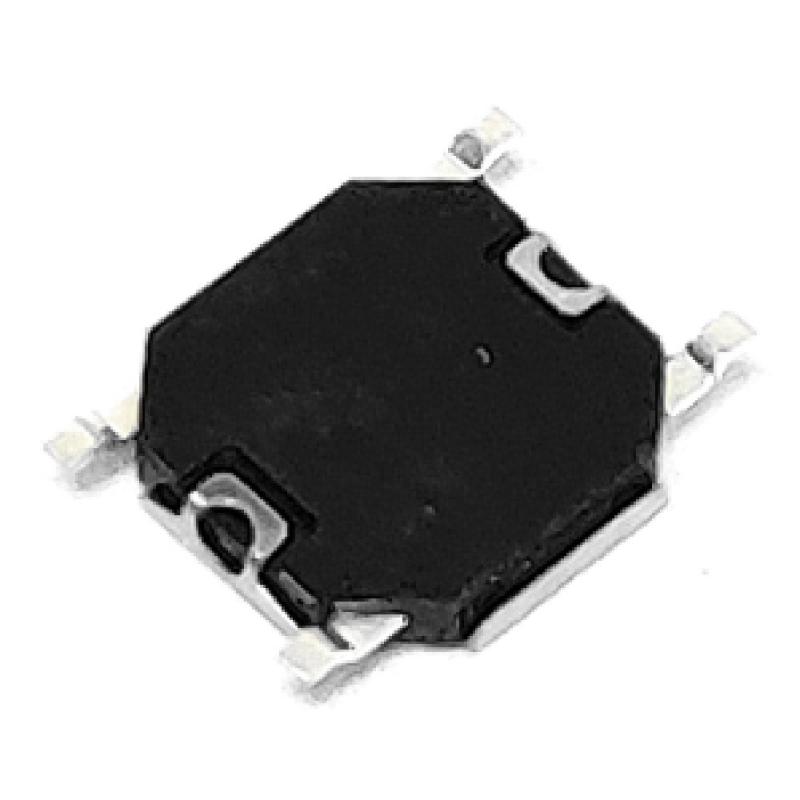

12V 50mA micro miniature surface mount tact switch

With membrane sensitive push button tactile switch


Parameter


China tact switch


Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Bounce: 10ms max

Operating Force: 260±50 gf

Full Travel: 0.2±0.1mm

Return Force: 20gf Min

Operating Temperature Range: -30℃~80℃

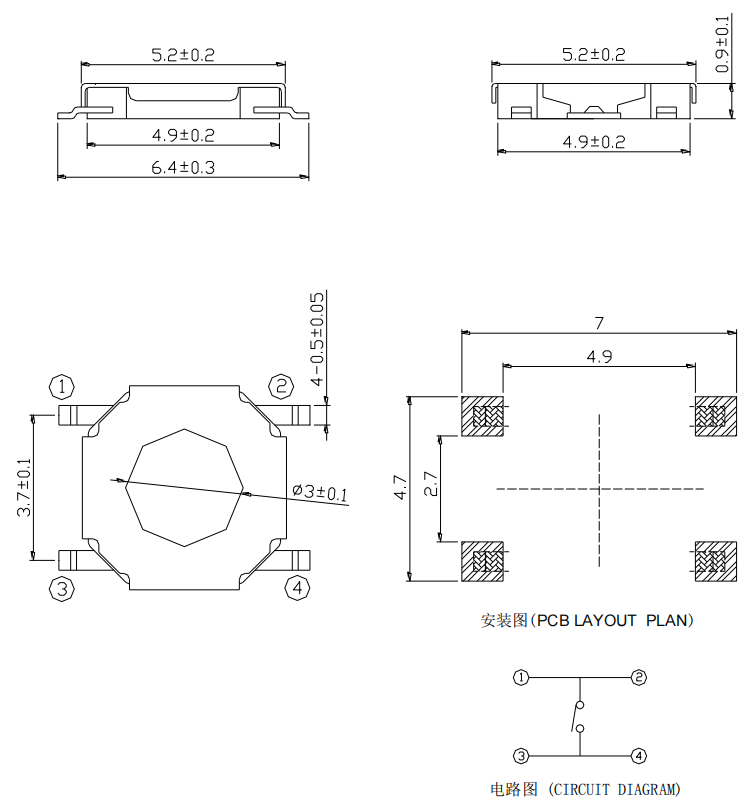

Drawing



Features


  • Surface Mount Types for High Density Mounting
  • Contributed to the miniaturization and light weight of the whole product
  • Suitable for reflow soldering
  • Reel packaging


Application


For audio equipment, video recorders, communication equipment, cameras, automobiles, remote controls, mobile phones, etc. that require thinning and light weight
