Home Switch Tactile switch 04 Series tact switch Normally Closed Smd Tact Switch Tactile Switch

Normally Closed Smd Tact Switch Tactile Switch

KAN0446: DC 12v 50mA, SMD type, high resistance tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0446
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days depend on order quatity
  • Product Detail

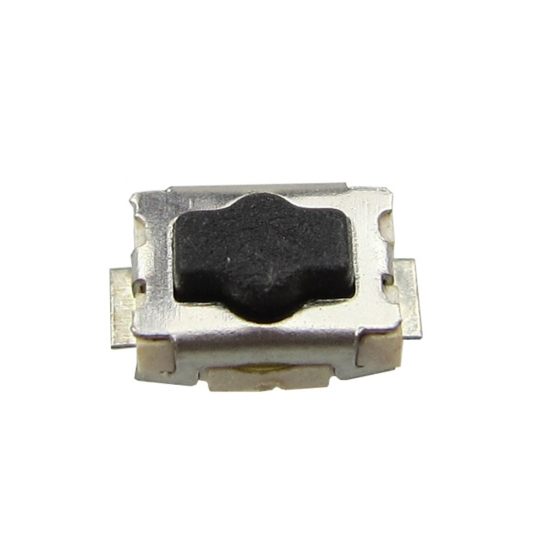

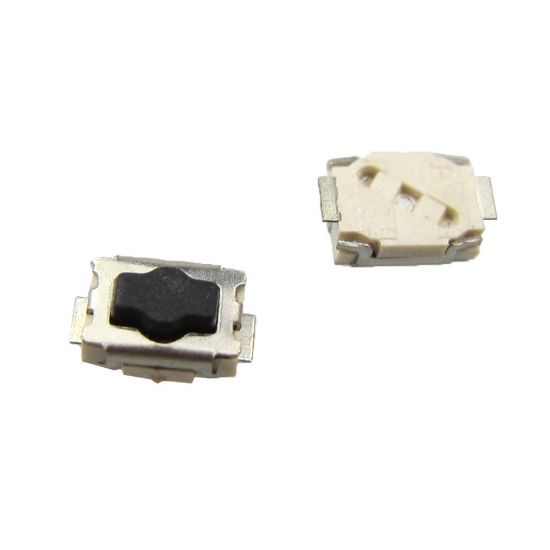

Normally Closed Smd Tact Switch Tactile Switch


Basic Information

                            P/N                               KAN0446
Rating 12VDC 50mA
Operating force

100gf, 160gf, 260gf(at customers request)

Life cycles
600,000/800,000/100,000cycles
Travel
0.2±0.1mm

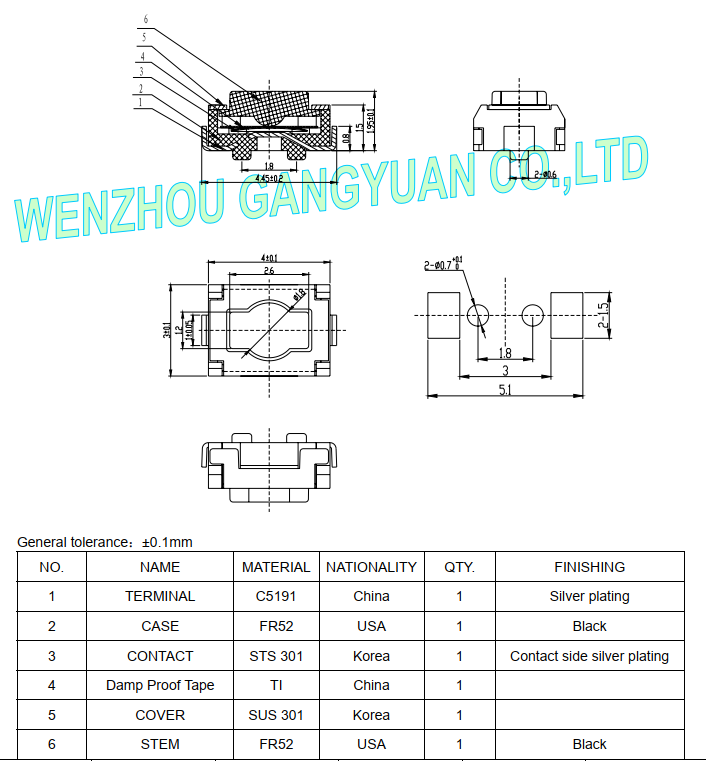

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switch.

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our Factory View
1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.
2. Strong R&D group for related switches, sockets, transformers, relays series.
3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.
4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.



Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
