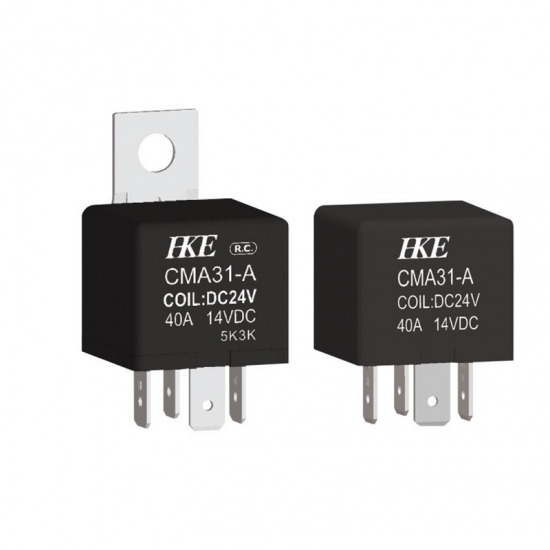

electric HKE relays 12v Auto power Relay 24v 100a
Brand:
GangyuanItem NO.:
CMA31-24V-COrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment24v relay,24v dc relay ,relay 24v 100a
Product Description:
| product type | Generl automotive relay |
| Dimension: | 27.8*27.8*24.6mm |
| Contact form | 1A,1B,1C |
| Coil Voltage | 6-24VDC |
| Opeartion Temperature | -40~85℃ |
| Contact and coil medium withstand voltage | 2.5kv |
| shell type | high or low |
| specification | PCB type and quick connection type |
| Storage conditions: |
(1)Storage Temperature: -40 to +85℃ (2)Environments:Store in locations where the product is not exposed to corrosive gas such as hydrogen sulfide gas or salty air.Store in locations where the product is not exposed to the direct ray of the sun and rain,snow. |
Dimension:
