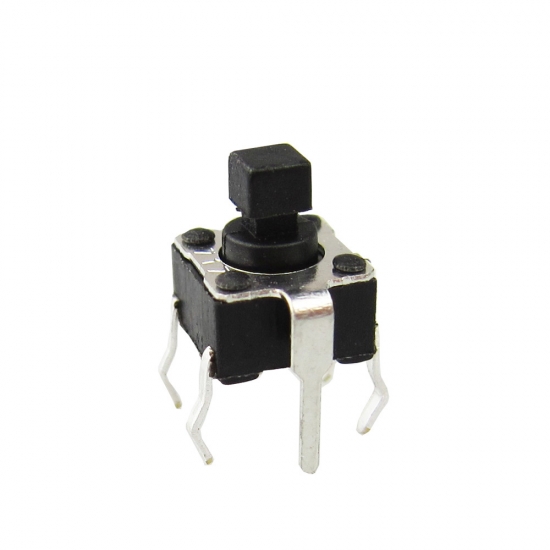

Gangyuan High quality 6x6 4pin Tact Switch with terminal

KAN0621: 4 Pins, 6*6mm, normally closed tact switch.



  • Brand:

    Gangyuan
  • Item NO.:

    KAN0621
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    ZheJiang China
  • Color:

    Black
  • Shipping Port:

    Ningbo, Shenzhen
  • Lead Time:

    5-7working days depends on actual quan
  • Product Detail

Gangyuan High quality 6x6 4pin Tact Switch with terminal


Basic Information

Temperature -20℃to+70℃
Rating 50mA.12V DC
Insulation resistance
100mΩ min.100V DC
Dielectric strength
250V AC for 1 min
Contact resistance
100mΩ  max
Travel 0.25±0.1mm
Height

4.3/4.5/5.5/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/

11.5/12/12.5/13/13.5/14/14.5/15/15.5/16/16.5/17/18/19/20/21mm

Operating Force 100gf/160gf/260gf

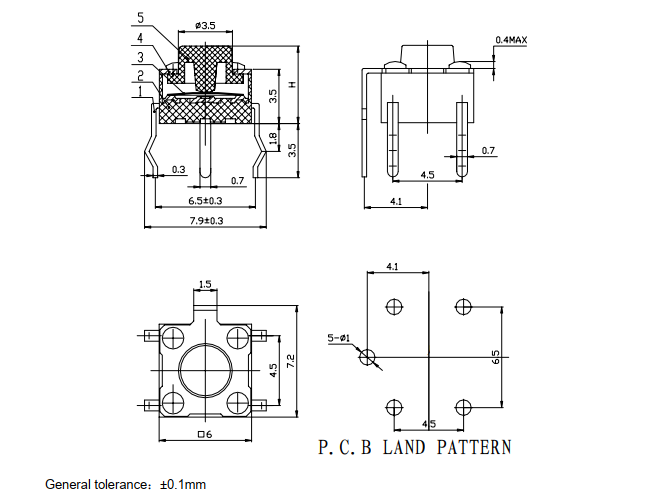

Dimension




Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.

2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.




Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Apllication


Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
