electric tact switch

50mA 12V 4 pin small slide electric tact switch knob

  • Brand:

    Gangyuan
  • Item NO.:

    KAN4541-0381B
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

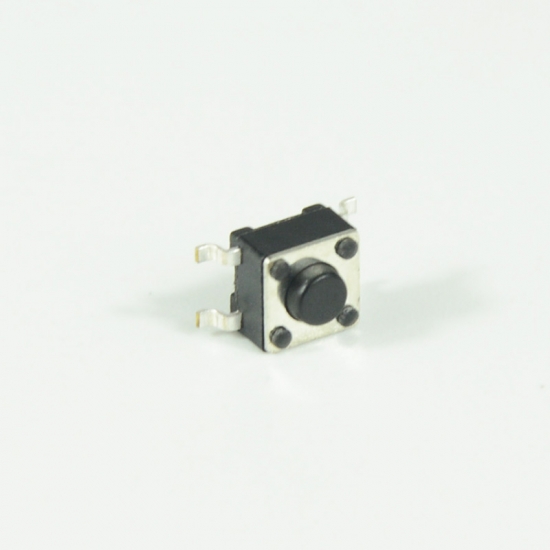

50mA 12V 4 pin small slide electric tact switch knob



Product Description:

Model Name:

SMD tact switch

Model No.:

KAN4541 series

Dimension:

4.5×4.5×H/ H=3.8MM

Operating force:

160±50gf

Life cycles:

50,000 times

Working tempreture:

 -30℃to±80

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.2±0.1mm
