Home Transformer & Connector Vertical Plug-in Low Frequency Transformer

Vertical Plug-in Low Frequency Transformer

Two or more wire windings placed around a common magetic core is the physical structure of a transformer.

It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss

  • Item NO.:

    EI35151506025
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail

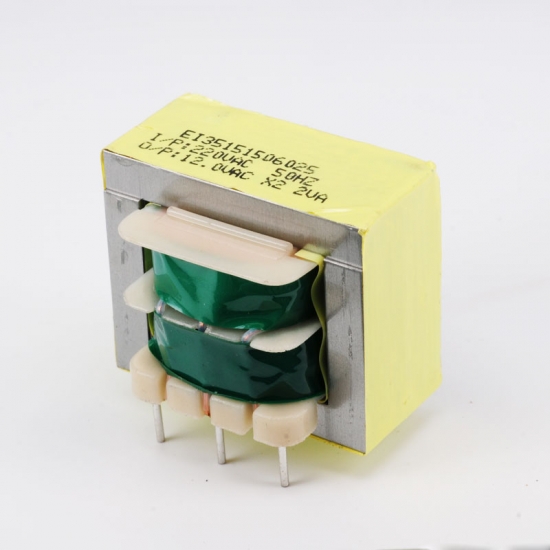

Product item:Vertical Plug-in low frequency transformer


Feature:

Dimension:37×33×31MM

Rating power:0-3.5W

Certification:UL.CCC

Fireproof grade:94V0

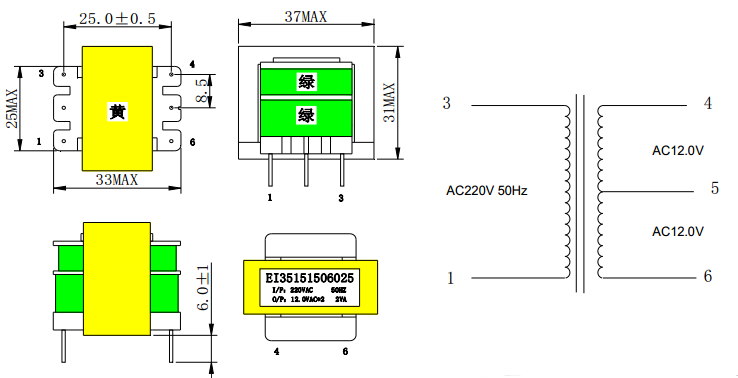

Dimension:



Application

Electronetics offers a wide variety of line frequency power transformers for 50 Hz, 60 Hz and 400 Hz applications for the avionics, aerospace and medical industries, to name a few.Electronics also offered sensing transformers (current or voltage) that deliver extremely accurate output while maintaining high isolation, small size and low cost.
