Home Transformer & Connector Vertical Low Frequency Transformer

Vertical Low Frequency Transformer

Two or more wire windings placed around a common magetic core is the physical structure of a transformer.

It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss

  • Item NO.:

    EI41141303004
  • Order(MOQ):

    5000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail

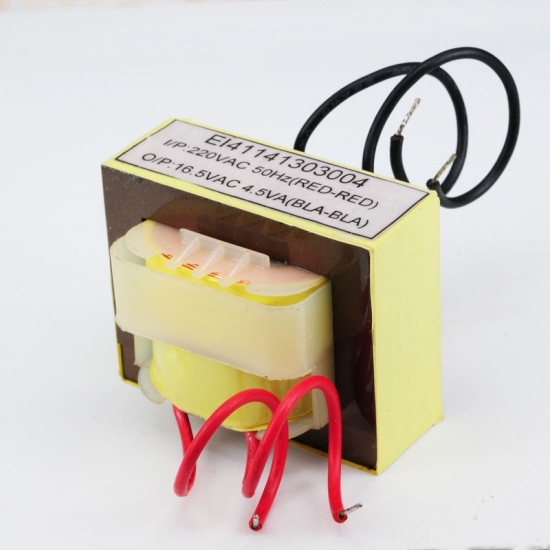

Product item:Vertical low frequency transformer


Feature:


Dimension:43.5×34.5×35.5MM

Rating power:0-3.5W

Certification:UL.CCC

Fireproof grade:94V0



Application

Electronetics offers a wide variety of line frequency power transformers for 50 Hz, 60 Hz  applications for the

household appliances, air conditioning, VCD, audio, microwave ovens, power amplifiers, programmable switches, mahjong machines, UPS power, machine tools and a variety of mechanical and electronic, medical, chemical, post and telecommunications, etc

Electronics also offered sensing transformers (current or voltage) that deliver extremely accurate output while maintaining high isolation, small size and low cost.

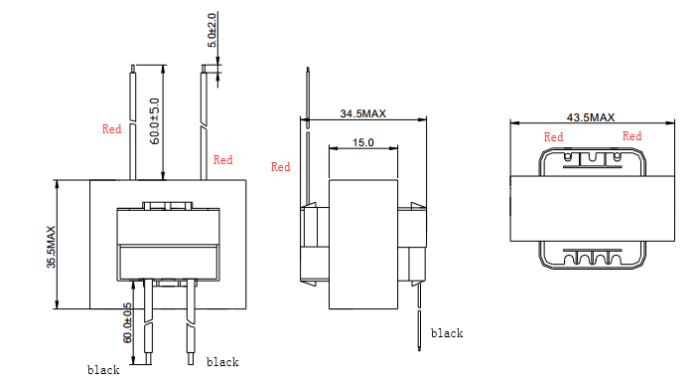

Dimension:
