Home Switch Tactile switch 35 Series tact switch Tactile Switch KAN3544C Gangyuan Factory White SMD Tact Switch

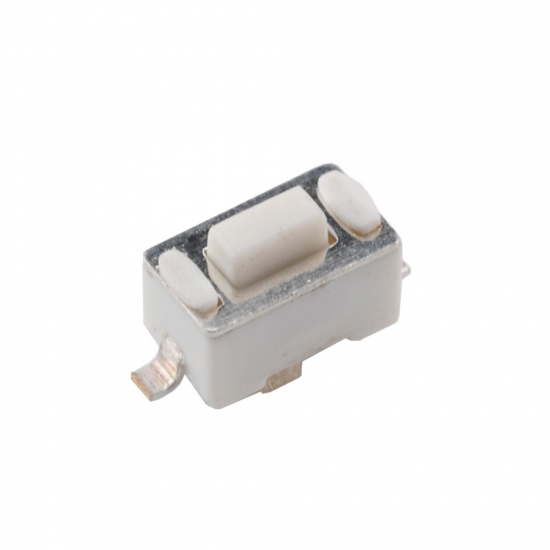

Tactile Switch KAN3544C Gangyuan Factory White SMD Tact Switch

KAN3544C: DC 12v 50mA, White and SMD type.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN3544C
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    shenzhen/Ningbo port
  • Lead Time:

    7-15working days
  • Product Detail

Tactile Switch KAN3544C Gangyuan Factory White SMD Tact Switch


Basic Information

                     P/N
 KAN3544C
Dimension
6x3.5mm
Height
4.3mm/ 5mm
Rating current
12VDC 50mA
Operating force
160gf, 260gf(at customers request)
Life cycles
50,000/100,000cycles

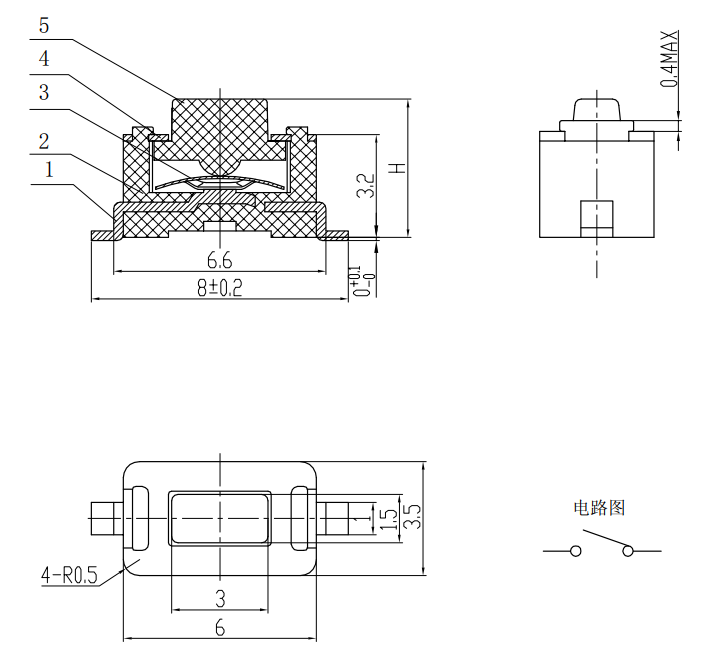

Outline Drawing


Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.




Tact Switch Using Attention

1. Please consult us when considering to wash tact switches.

2. Please don’t immerse soldering flux into tact switches.

3. Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board.

4. The second welding should be done after switches return to normal temperature.



Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
