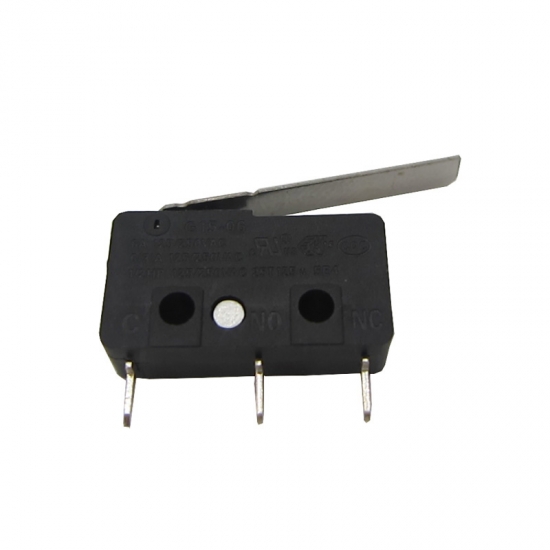

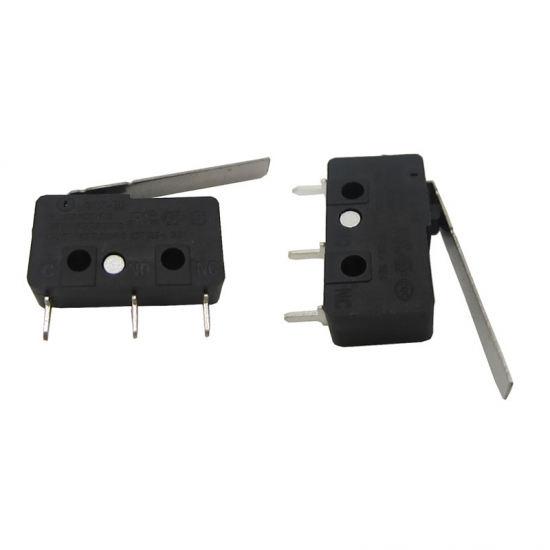

Home Switch Micro switch G15 Series T85/125 6A 125V 3Pin Lever Micro Switch

T85/125 6A 125V 3Pin Lever Micro Switch

G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06SM03-30-15
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal before shipping.
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen or Ningbo
  • Lead Time:

    5-7 working days depend on the order QTY
  • Product Detail

T85/125 6A 125V 3Pin Lever Micro Switch


Basic Information

Operating Temperature Range
         -25℃~+85℃
Operating Relative Humidity
≤85%
Voltage Rating
125/250V AC
Current Rating
6A
Contact Resistance
≤100mΩ
Insulation Resistance
≥100MΩ
Dielectric Withstanding Voltage
1500V AC 1Min
Soldering Temperature
260±5℃ 5s
Operating Force
30±15gf
Life Time
50000 Cycles

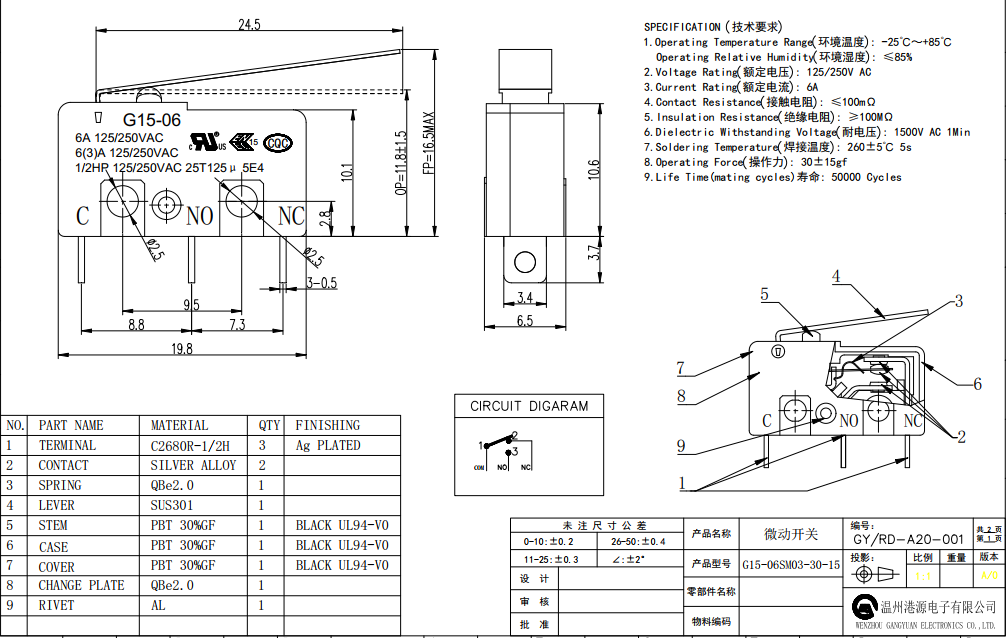

Dimension



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
