Home Switch Toggle switch Sealed Ultraminiature Vertical Right Angle Toggle Switch

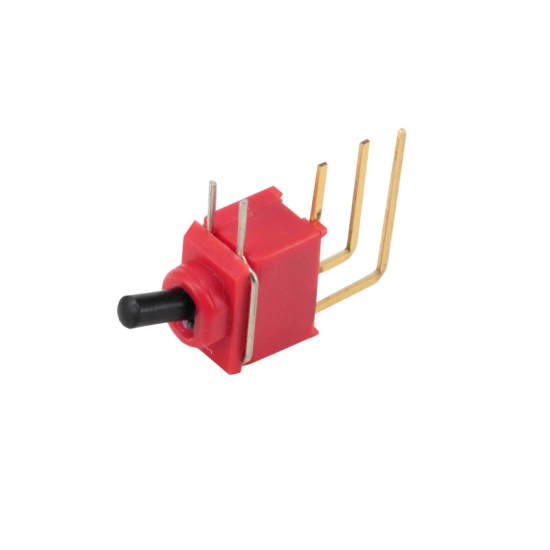

Sealed Ultraminiature Vertical Right Angle Toggle Switch

Sealed Ultraminiature pushbutton switch, PC thru-hole, right angle type, vertical right angle type terminals for choices.

  • Brand:

    Gangyuan
  • Item NO.:

    2US1T1A1M7RES
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    20 working days after payment
  • Product Detail

Sealed Ultraminiature Vertical Right Angle Toggle Switch


Feature

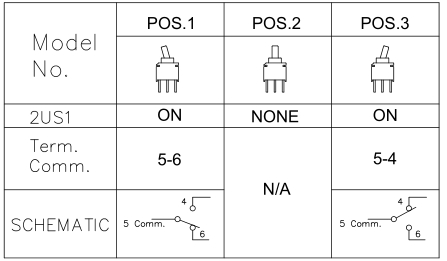

Sealed Ultraminiature pushbutton switch, PC thru-hole, right angle type, vertical right angle type terminals for choices. Switch functions offer ON NONE-ON, ON-NONE-MOM, ON-OFF-ON.Contact could be gold plated as customers' request.




Specification

Mechanical life: 40,000 make-break cycles

Contact rating: 0.4VA Max@20V AC or DC Max

Contact resistance: Below 100mΩ, typ. initial@2-4V DC, 100mA

Insulation resistance: 500MΩ min.

Dielectric strength: 500V RMS@sea level

Operating temperature: -30℃ to 85℃

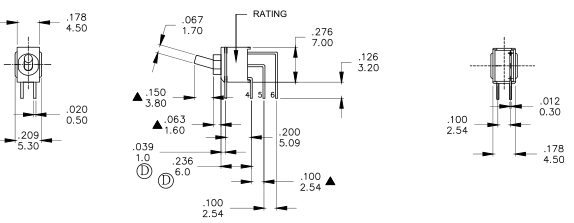

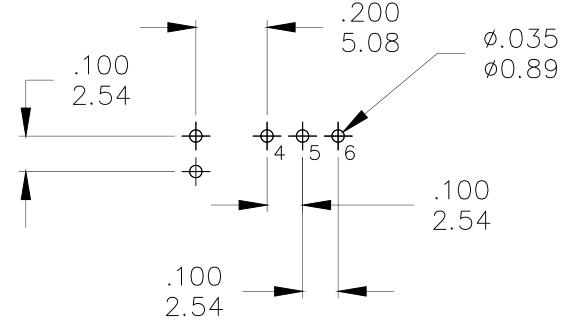

Dimension
