Home Switch Tactile switch Right angle tact switch with SMT type

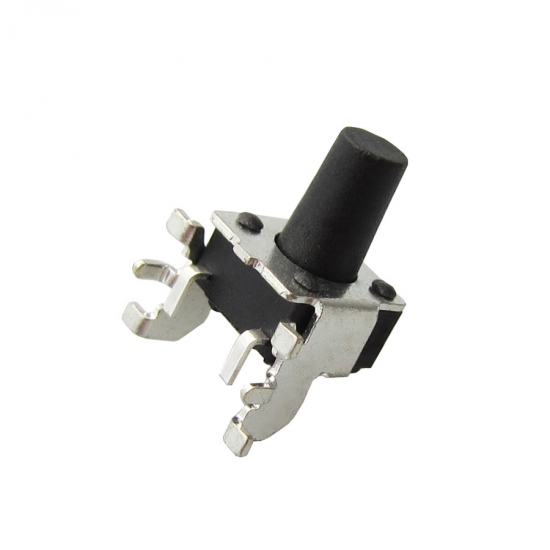

Right angle tact switch with SMT type

Newest right angle tactile switch,hard plastic actuator,SMT or through hole mounting style for choose.


  • Item NO.:

    KAN0671
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:Right Angle Sealed Tact Switch


General characteristic

Operating temperature -40℃~85℃
Rating 12V DC,0.5A
Operation force 1.6±0.5N
Full travel 0.25±0.1mm
Operation life 80,000 cycles

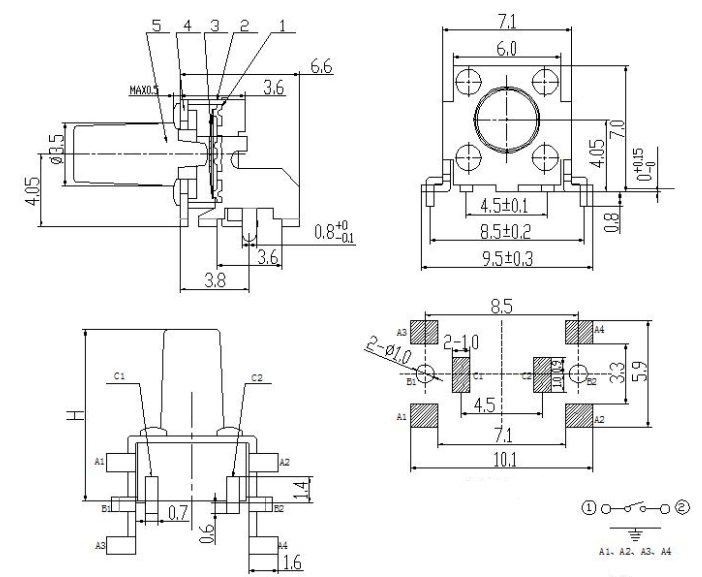

Dimension:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE PA66 1 Black
3 CONTACT Phosphor bronze 2 Contact side silver plating
4 COVER SPCC 1 Cu Sn plating
6 STEM PA66 1 Red


Application
