Home Switch Micro switch G10 Series Right Angle Dip Mini Micro Switch

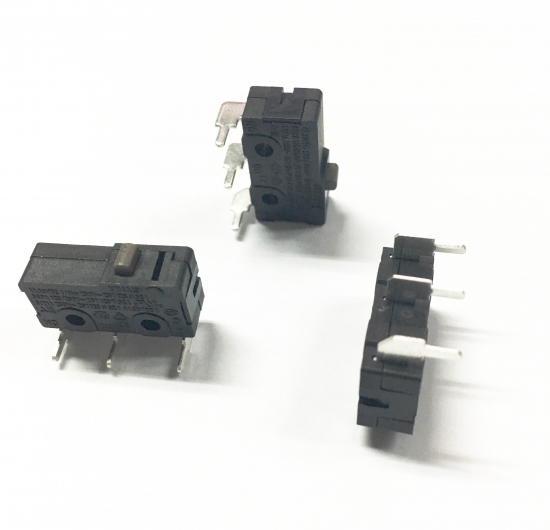

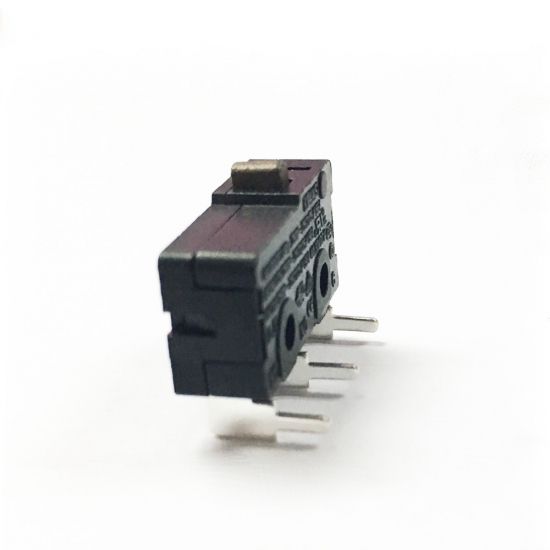

Right Angle Dip Mini Micro Switch

G10-3-01S: 125/250V AC 4A, 200±15gf, 50,000cycles mini micro switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G10-3-01S
  • Order(MOQ):

    100
  • Payment:

    T/T
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Shanghai / Shenzhen
  • Lead Time:

    10-15 days
  • Product Detail

Right Angle Dip Mini Micro Switch


Basic Information

          P/N              G10-3-01S
Voltage Rating
AC 125V/250V
Current Rating
4A/ 30VDC
Operating Force
200±15gf
Life Time
500,000 times
Contact Resistance
≤50mΩ
Insulation Resistance
≥100MΩ
Dielectric Withstanding Voltage
1500V AC 1Min
OP distance
8.6±0.4mm

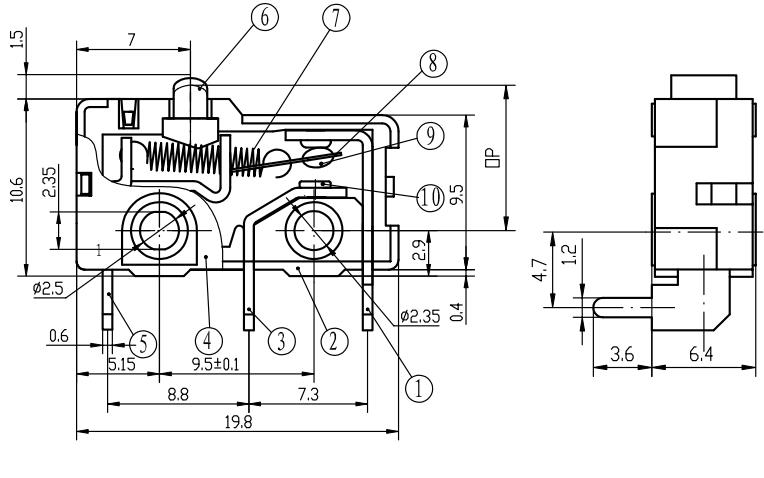

Outline Drawing




Certificates

UL, CQC, ENEC15VED, CE, ISO 9001.



Shipping Details

 Packing

      Normal for micro switch

    1500pcs/reel, 2reels/box, 20boxes/carton,

     Carton size: 45*35*28cm

     NW: 12KG GW: 14KG

 Shipping method

      Express, Air freight, ship, truck, etc.


Our Service

1. Excellent R&D team, Clients design of micro switch requests are welcome.

2.The more quantity, the price more competitive.

3.Available free switch samples, within 3 working days.



Our advantage

1. Experience of more then two decades in switch manufacturing.
2. Two thousands invention patents and 47 utility model patents.
3. Assembly process in 100,000 grade dust-free workshop.
4. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.




Appliance

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
