Home Switch Micro switch G15 Series Miniature On Off Micro Switch Three Pins Micro Switch

Miniature On Off Micro Switch Three Pins Micro Switch

G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-10SM04
  • Order(MOQ):

    500
  • Payment:

    T/T, Paypal before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days depend on order quatity
  • Product Detail

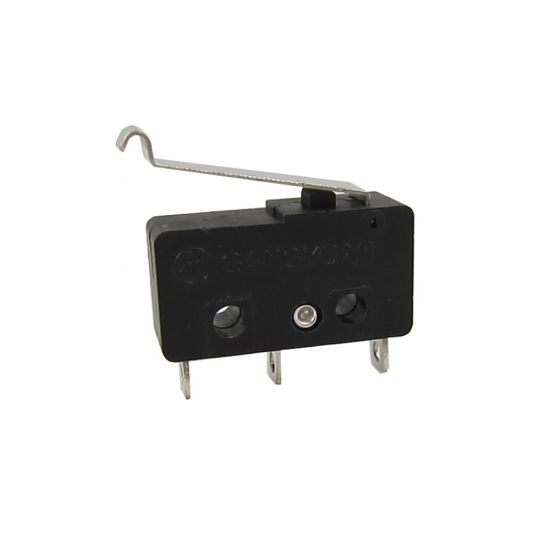

Miniature On Off Micro Switch Three Pins Micro Switch


Basic Information

                     P/N                                              G15-10SM04
Voltage Rating
125/250v AC
Current Rating
10A
Operating Temp
 -25℃~+125℃
Life
50,000 cycles
Protection Level
High Level
Dielectric Withstanding Voltage
1500V AC 1Min

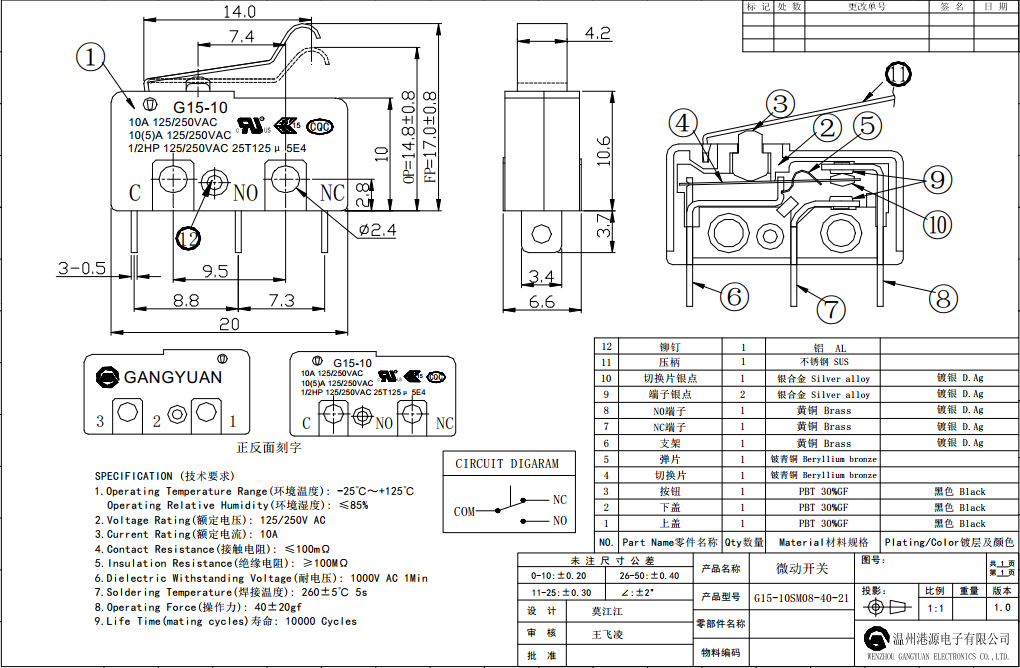

Dimension



Packing & Delivery

Packing: 120/box, 2400boxes/carton, carton size: 45*35*28cm NW: 18KG GW: 20KG

Shipping: By sea, by air, Express DHL, UPS, FEDEX etc. Delivery time: around 7~10 working days.

Payment: T/T, D/P, L/C, Paypal, Cash etc. Please kindly inform us when you transfer the payment, will prepare order once get it.



Our Service

1. Excellent R&D team,your new design of tactile switch is welcome.

2.When the quantity was enough,we can refund the mould fee.

3.Available switch samples is free for checking the quality, samples date 3 working days.



Application


Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
