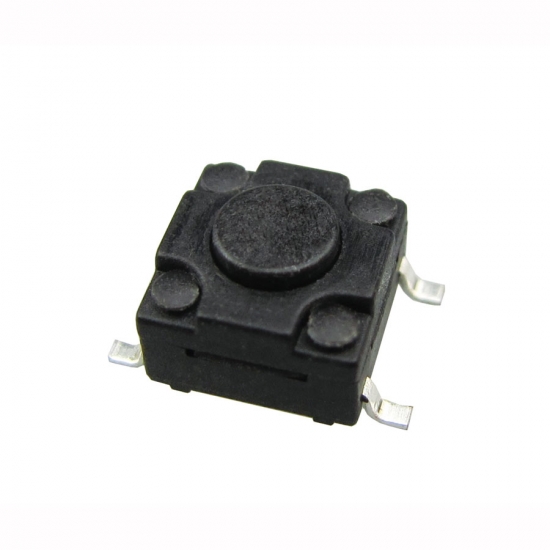

Mini-tactile push button switch surface mount

KAN0642F is waterproof type tactile switch,IP67 rated,widely used in household appliance.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN0642F
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:6×6 waterproof tactile switch


Feature:

ON/OFF tactile switch with high clicking performance and high reliability,IP67 rated.Can be customized according to different request,such as operation force,height,with column or without column .Fully automated production,test and tape packaging


General characteristic:

Operating Temperature

 -20℃~70℃

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Contact resistance

100mΩ max

Operation force

2.6±0.5N

Operation life

60,000 cycles

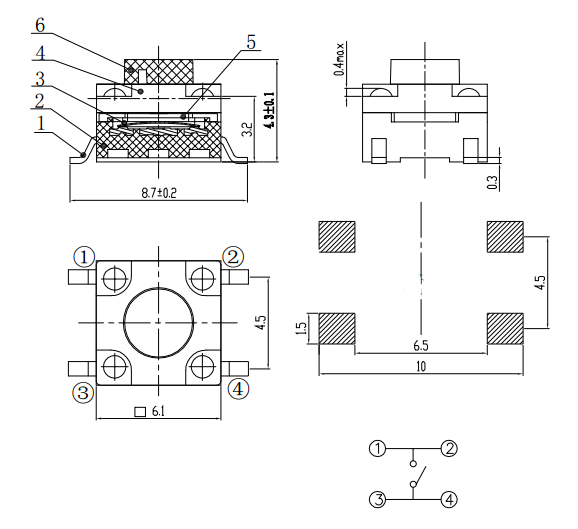

Datasheet:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE PPA 1 Black
3 CONTACT SUS 1 Contact siede Ag plating
4 COVER PPA 1 Black
5 WATERPROOF PAD Rubber 1 Black
6 STEM PPA 1 Black

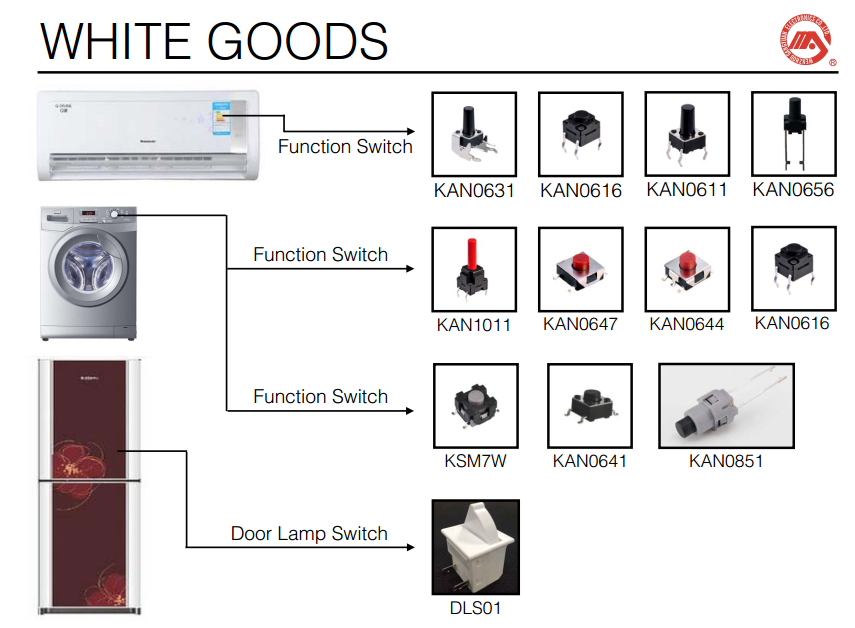

Application
