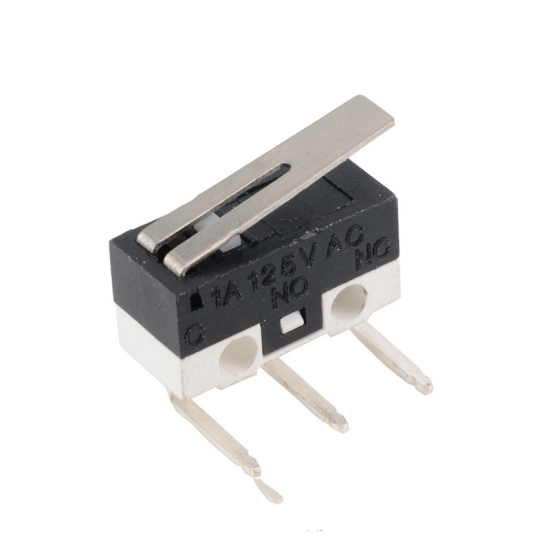

Hot-Selling Gangyuan Manufacture DM1-02CWL-30-3 Micro Switch SPST

Product model: DMI-02CWL-30-3
Specification: 12.8mm*5.8mm
Operating force: 80±15gf -180±15gf
Features: left and right feet

MOQ: 1000

Brand:
Gangyuan
Item NO.:
DMI-02CWL-30-3
Order(MOQ):
1000
Payment:
EXW, FOB, DDP and etc
Product Origin:
China
Color:
Black and white
Shipping Port:
shenzhen, ningbo
Lead Time：
7-15working days depends on Qty

Product Detail

Basic Information

Rated load	AC 125V 1A	Operating temperature	-25°C+85°C
Contact resistance	≤100mΩ	Insulation resistance	AC 500V 1Minute
Operating force	80±15gf	Mechanical life	500,000 Cycles

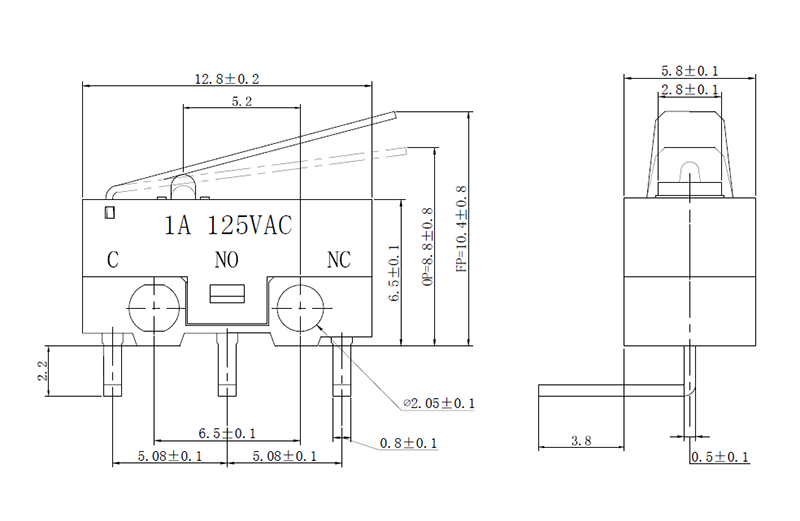

Drawing

Appliance

Micro switch can be widely used in Mouse, Security products, Doorbell, Automotive electronics,Communication equipment, Military products, Measuring and test instruments, Gas water heater,Gas burner, Small home appliances, Microwave Oven, Electric rice cooker, Floating ball equipment match, Medical apparatus and instruments, Building Automation, Electrical tool and General Electric, Wireless radio sets.
