The waterproof tact switch was born because when people press the switch, their hand will be oily and the water will be conductive. The manufacturer recognizes this and they consider it to ensure the safety of the consumer. To various comprehensive factors, the waterproof tact switch was gradually invented.

Gangyuan waterproof tact switch is known for its high performance, high quality, high technology and long service life, and is favored by customers. Today, I will introduce a high-performance waterproof tact switch. This product has already exceeded 1 billion per year in production. It is one of the favorite products of the top 500 customers.

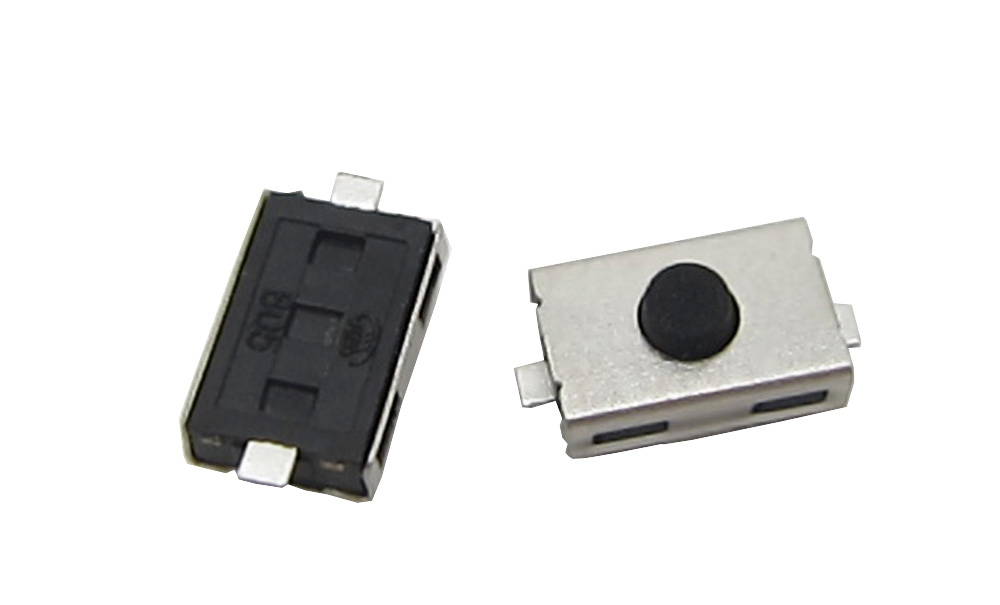

Producti Type：SMD Waterproof tact switch
Dimension：6×3.8×2.5mm

P/N：KAN0441F

Operating force：300gf±50gf
life cycles：100000

features：waterproof IP67， reflow soldering

Basic parameters
Operating temperature：-20℃to+70℃
Rated current：50mA.12V DC
Insulation resistance：100MΩ min.100V DC
Dielectric strength：250V AC for 1 min
Contact resistance：100m Ω max.
Travel: 0.4±0.15mm

APPLICATION:

Electric toothbrush, Electric shaver,communication equipment, measuring instruments, TV, video recorder and personal care products.

If you want to know more about other waterproof switches or related waterproof products, please contact, thank you!
