Home Switch Tactile switch 35 Series tact switch Gangyuan Manufacture SMD 12V 50mA Tact Switch

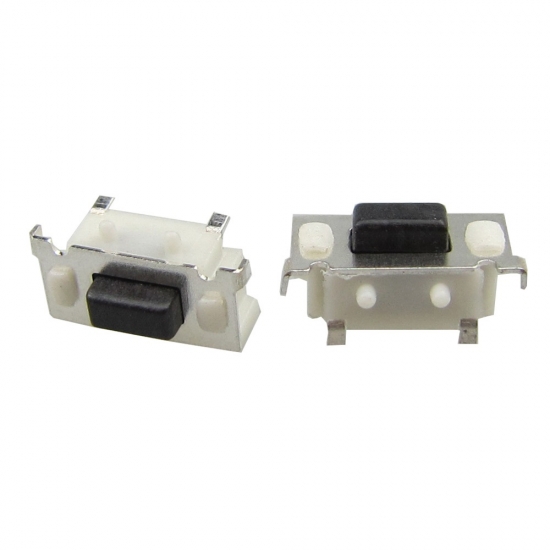

Gangyuan Manufacture SMD 12V 50mA Tact Switch

KAN3543: Mini SMD type tactile switch with 2 pins.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3541
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/ningbo
  • Lead Time:

    7-15working days
  • Product Detail

Gangyuan Manufacture SMD 12V 50mA Tact Switch


Basic Information

                         P/N
KAN3543
Type
SMD tact switch
Dimension
3×6×3.85mm
Operating force
160gf/260gf
Life cycles
50/100  thousand cycles
Characteristics
small smd size

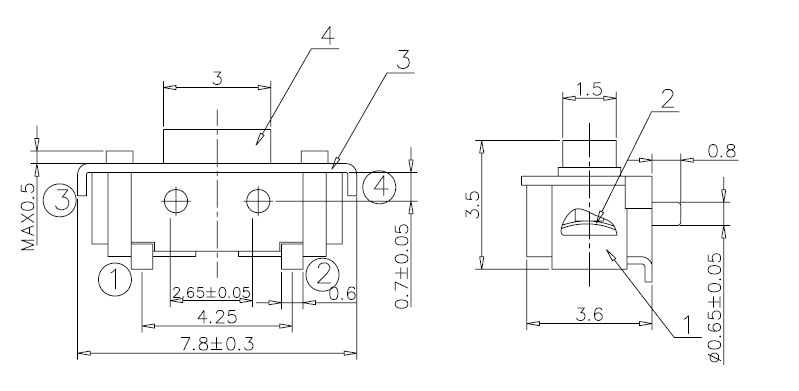

Dimension


Tact Switch Using Attention

1.     Please be cautions not to give excessive static load or shock to switches.

2.     Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
