Home Switch Tactile switch 12 Series tact switch Gangyuan brand 12x12 tactile switches surface mount with different stem design and height

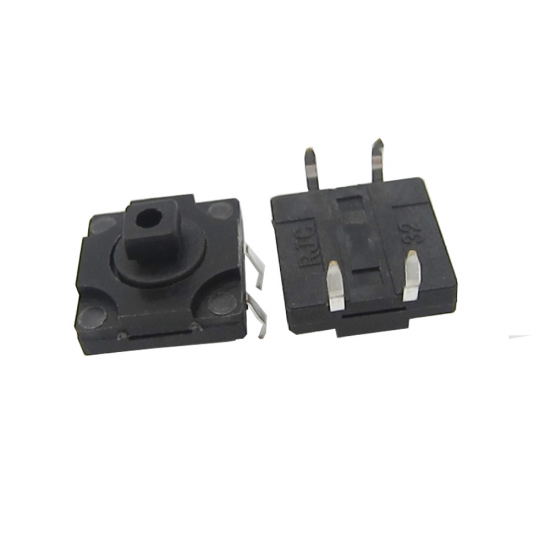

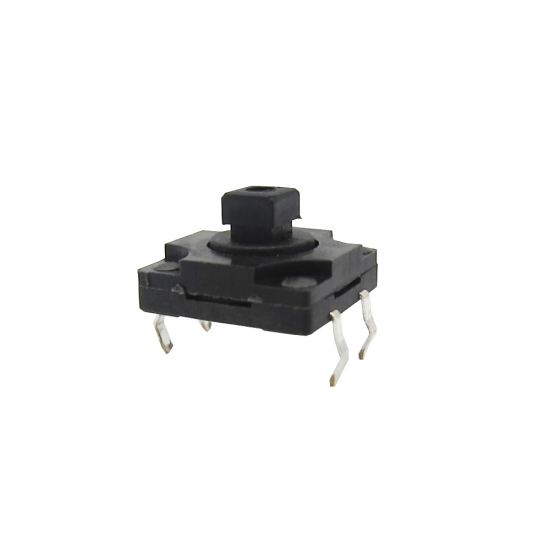

Gangyuan brand 12x12 tactile switches surface mount with different stem design and height

Gangyuan high quality 12cm smd tactile switches with different stem and height.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1216-0731C-3
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

Gangyuan high quality 12cm smd tactile switches with different stem and height, square shape stem,4pin smt,stem from4.3mm-18mm.



Product Description

Model Name:

12x12 tact switch

Model No.:

KAN1216-0731C-3

Dimension:

12x12mmx H( 4.3-18mm)

Operating force:

160±50gf -260gf

Life cycles:

100,000 Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.35±0.1mm

Features:

Button color RGB Red or black

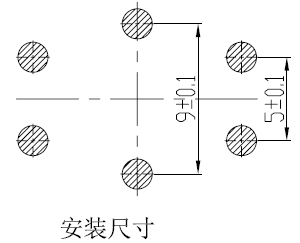

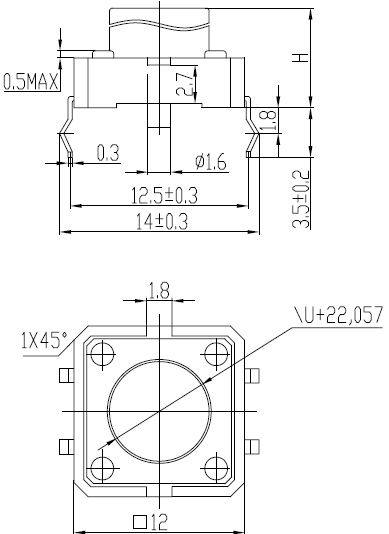

Dimension





Application

Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
