Home Switch Tactile switch Five direction tact switch 0.5a 12V

Five direction tact switch 0.5a 12V

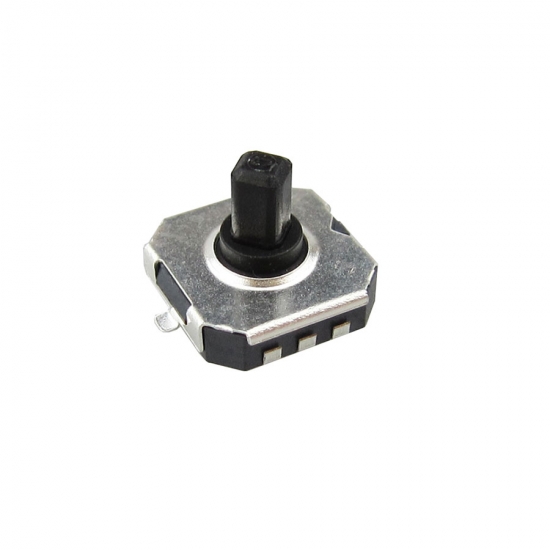

This 5 Way/direction SMD tactile switch simulates joystick movement. It has six  solder pads underneath, and extends to the side.



  • Brand:

    Gangyuan
  • Item NO.:

    KAN0741
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black stem
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:Five direction tact switch


Feature:


  • Size:7.5*7.5*5.0mm
  • High clicking performance and high reliability
  • Multi-directional switch
  • With boss or without boss
  • Tape and reel packaging



General characteristic:

Operating Temperature

 -20℃~70℃

Rating

12V DC,50mA

Contact arrangement

1 pole 5 throw

Contact resistance

500mΩ max

Operation force

Center 2.35N;4-Dir 1.23N

Operation life

200,000 cycles

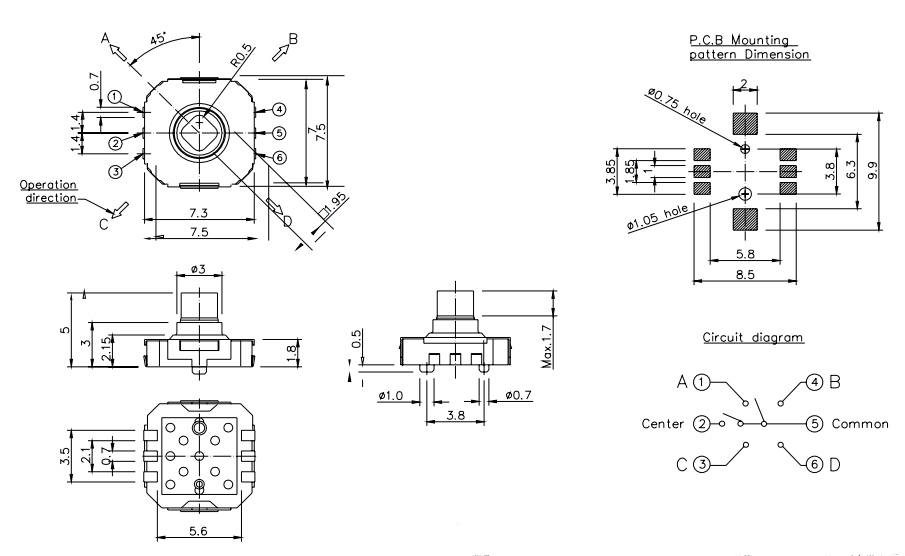

Dimension:



Application


Five directional switch are widely used in automotive electronics, electrical appliances, communications, equipment, audio, digital products (such as DVD, VCD, MP3, MP4, video cameras, computers)
