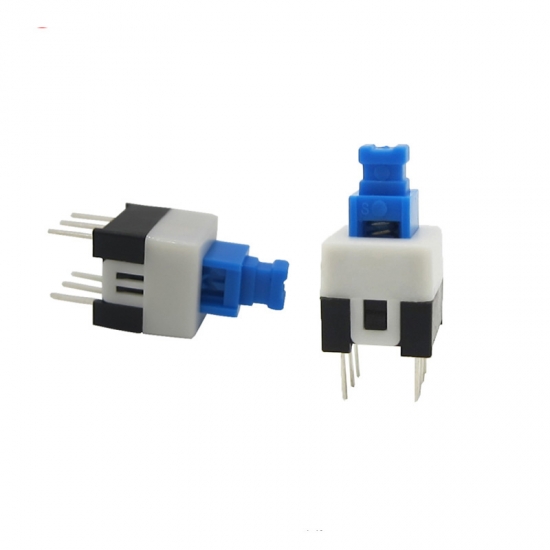

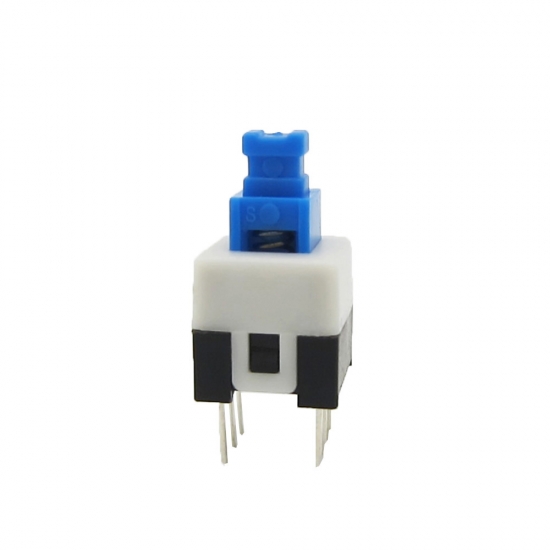

7mm Latching Auto Lock and Non Lock Momentary Push Button Switch

7mm Latching Auto Lock and Non Lock Momentary Push Button Switch,Momentary contact, 6 pins, square blue push button, DIP through hole mounting, locking&non locking style ,7x7mm push button switches, etc.

  • Brand:

    Gangyuan
  • Item NO.:

    PB21E07431-07
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black white and blue
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

7mm Latching Auto Lock and Non Lock Momentary Push Button Switch


Feature

Momentary contact, 6 pins, square blue push button, DIP through hole mounting, locking&non locking style ,7x7mm push button switches, etc.

Used in the fields of electronic products,setupbox, household appliances and more. High precision mechanism design offers acute operation and long service life.



Product name No-locking push button switch
Model Number

PB21E07431-07

Operation force

1.8N±0.3N

Operating Temperature Range -5~35℃
Contact Resistance 100mΩ max
low resistance -20±2℃,72h
Heat resistance 80±2℃,72h
Mositure resistance 72h,40±2℃
Salt Mist 8h±1h,35℃±2℃
Operation life 10,000 cycles




Dimension








Application

Self-lock momentary Push Button Switch aoto lock switches,use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment, Industrial control.
