Home Switch Tactile switch 6 x 6x10mm Square actuator tactile push button switch

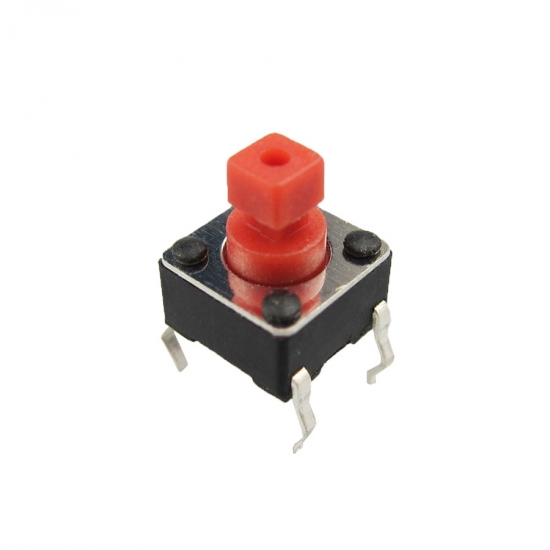

6 x 6x10mm Square actuator tactile push button switch

6.0mm square stem in red color,which is easy to use and available in wide varieties.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN0610
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black/red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:Square Actuator tactile push button switch


Feature:


  • Snap-in type,which can be directly mounted on PC board.
  • Some of output terminals can be also used as jumper leaders,thus making circuit arrangement easy.
  • Available with anti-ESD ground terminal
  • Standard knobs are available



General characteristic:

Contact arrangement

 1 pole,1 throw

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Contact resistance

100mΩ max

Operation force

160±30gf

Operation life

100,000 cycles

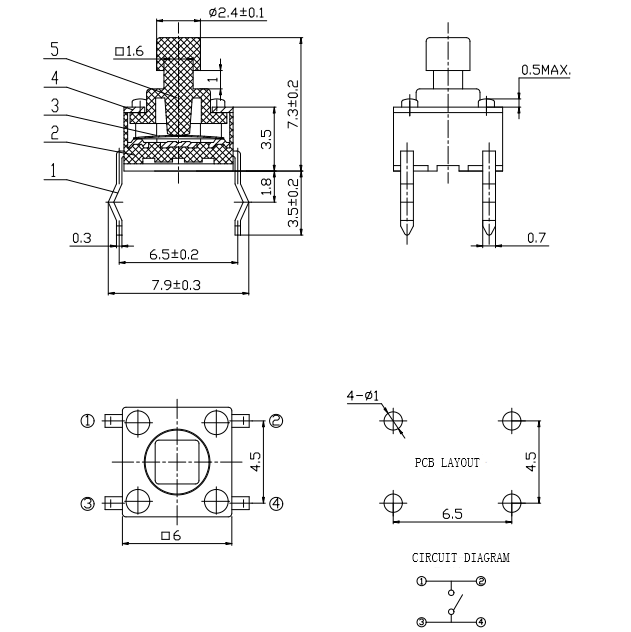

Dimension:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE PA66 1 Black
3 CONTACT Phosphor bronze 2 Contact side silver plating
4 COVER SPCC 1 Cu Sn plating
6 STEM PA66 1 Red

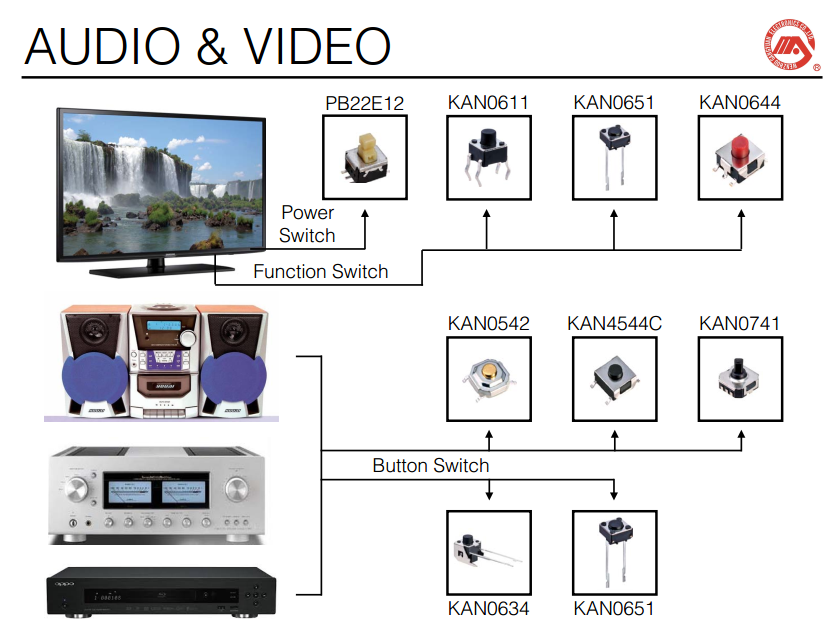

Application
