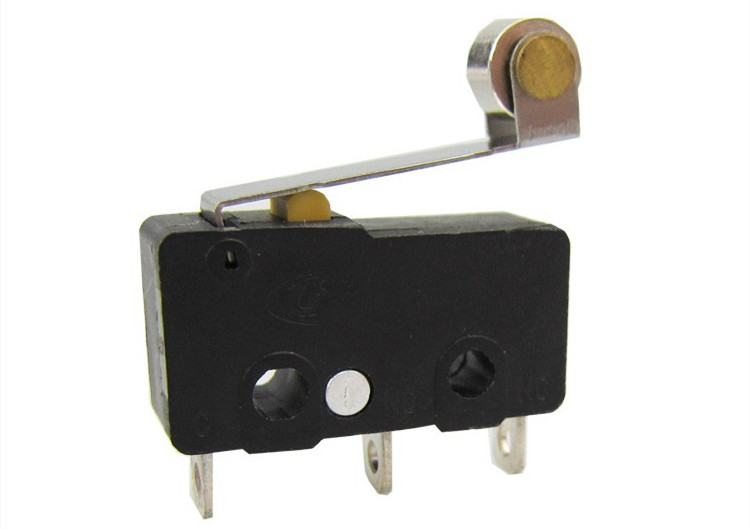

Home Switch Micro switch G15 Series 3 Pin Roller Hinge Lever Micro Switch

3 Pin Roller Hinge Lever Micro Switch

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06PM03-40-13
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

3 Pin Roller Hinge Lever Micro Switch

Product Description:

Application

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.





Specification:

Item No.
KW2-4-50N-40-2

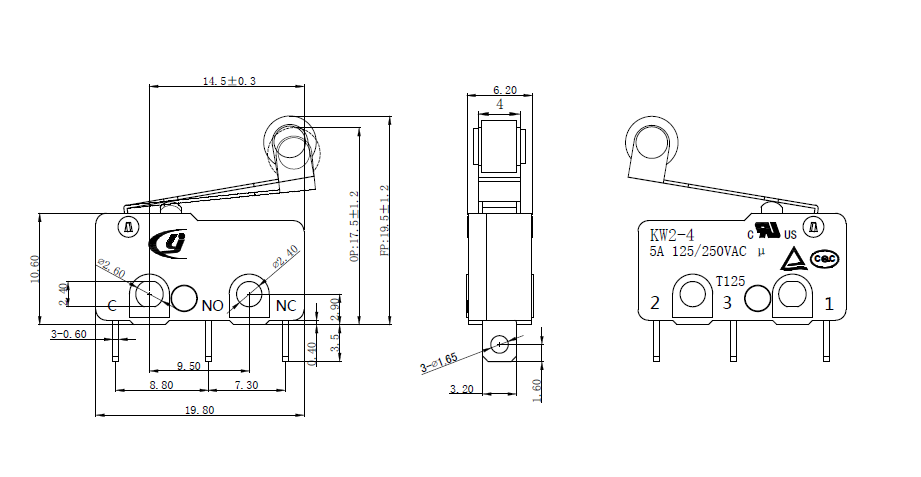

Dimension
19.8mmx6mm
Contact resistance
≤100mΩ
Insulation resistance
 AC 500V 1Minute
Operating temperature
-25℃+85℃
Operating force
40±10gf
Life expectancy
1,000,000Cycles
Rating
AC 125V 5A/AC 250V 3A
