Home Switch Micro switch G20 Series 16A max current micro switch short hinge roller lever

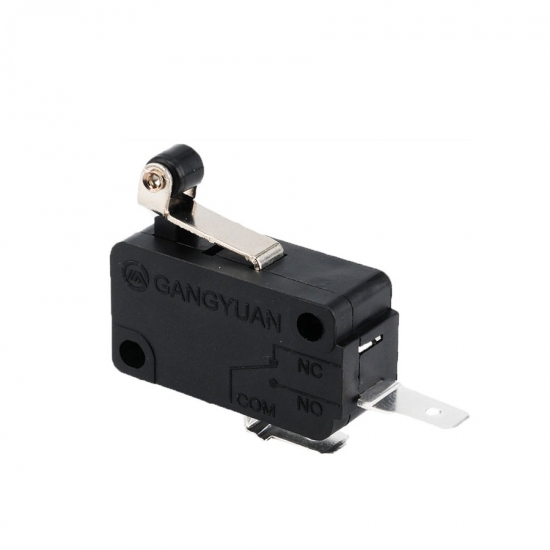

16A max current micro switch short hinge roller lever


Micros witches have three terminals labelled C, NO, and NC, standing for Common, Normally Open, and Normally Closed.

  • Item NO.:

    G20-16GN10-150
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:micro switch short hinge roller lever


General characteristic:

Rating

 16A,125/250V AC

Operation Temperature

-25℃±125℃

Electrical life

50,000 cycles

Mechanical life

100,000 cycles

Operation force

150±50gf(MAX)

Contact resistance

≤200mΩ MAX


Micro switch are useful for detecting passage of a moving part or for implementingf an electronic limit stop.Set up the switch so that your mechanism wipes the lever and closes the switch as it moves by.

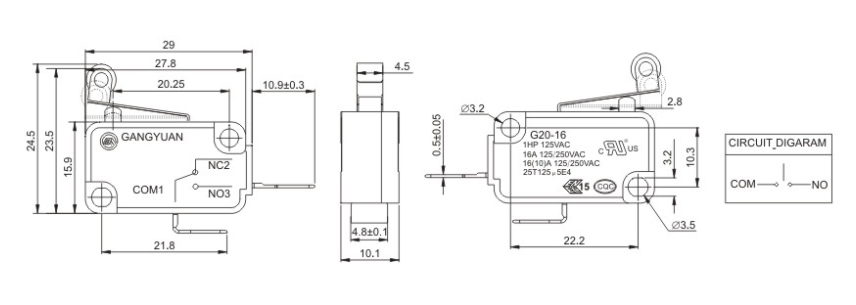

Dimension:



Advantages:

This micro switch is self-cleaning structure of contact,adaptation to low speed operation,and varity of installation,micro gap structure and 3mm gap structure.,there have a variety of long-term use of the temperature a range available.
