Home Switch Tactile switch 12 Series tact switch 12x12mm smt Tactile Switch momentary push button switch normally closed

12x12mm smt Tactile Switch momentary push button switch normally closed

12x12mm smt Tactile Switch momentary push button switch normally closed,H 5mm, use for general electronic products.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1211-0501B
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    5-7 Working Days after payment
  • Product Detail

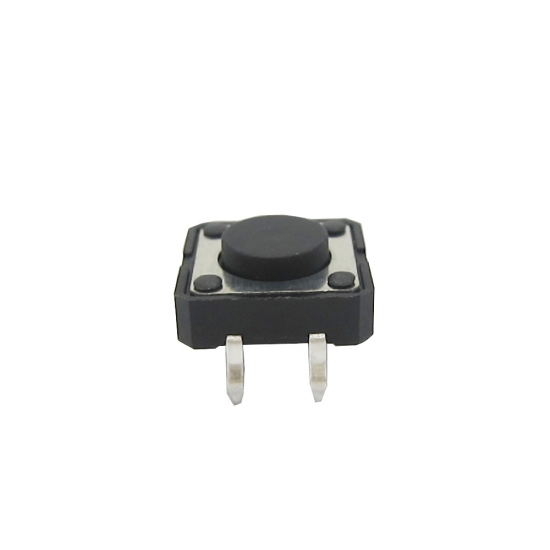

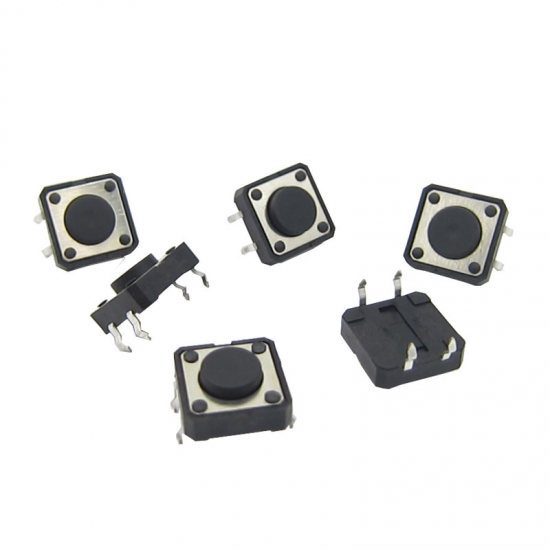

12x12mm smt Tactile Switch momentary push button switch normally closed


Features

Electrical rating:DC 12V 50mA max

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ  100V DC

Withstand voltage: 250V  AC  / 1 min

Operating Force:160±50gf -260gf

Return Force: ≥ 20gf

Operating Rate: 35%-75%

Full Travel:0.35±0.1mm

Dimension: 12x12mmx H 5mm ( 4.3-18mm)

Button Colour: Red or black

Operation life
100,000/80,000 cycles Min
Salt Mist
35℃±2℃  8h±1h
Sulfuration  resistance
40±2℃  72h
Moisture  resistance
60±2℃   96h
Insulation Resistance
≥100MΩ
Contact resistance
≤50mΩ
Heat resistance
80±2℃  96h
Resistance to low temp
-30±2℃  96h
Return Force
0.4min
Press force
160 /260gf
Model Number
KAN1211-0501B1
MOQ
1000

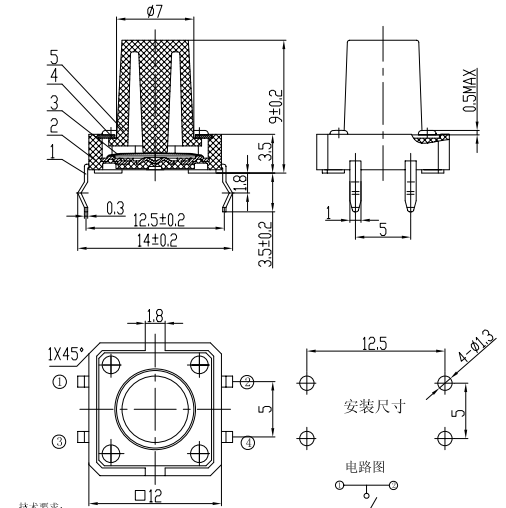

Dimension





Application

12x12x5mm momentory push button tactile switches , use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment, Industrial control.
