Home Switch Tactile switch 12 Series tact switch 12x12mm Plastic Square stem 4pin smd tactile switch

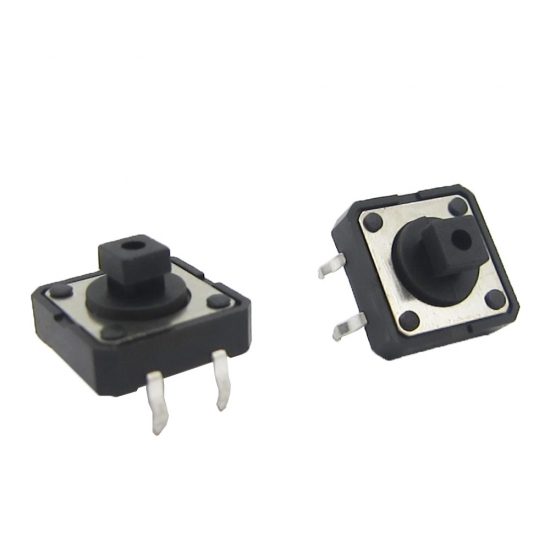

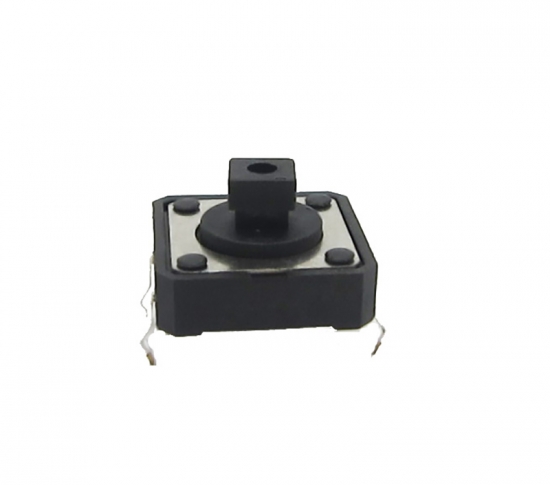

12x12mm Plastic Square stem 4pin smd tactile switch

12x12mm Plastic Square stem 4pin smd tactile switch, high quality, use for electronic products.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1210-0731B
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or red stem
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    5-7 Working Days after payment
  • Product Detail

12x12mm Plastic Square stem 4pin smd tactile switch


Product Description

12x12mm Plastic Square stem 4pin smd tactile switch,Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
Industrial control.


Model Name:

12x12 tact switch

Model No.:

KAN1210-0731B

Dimension:

12x12mmx H( 4.3-18mm)

Operating force:

160±50gf -260gf

Life cycles:

100,000 Cycles

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.35±0.1mm

Features:

Button color RGB Red or black

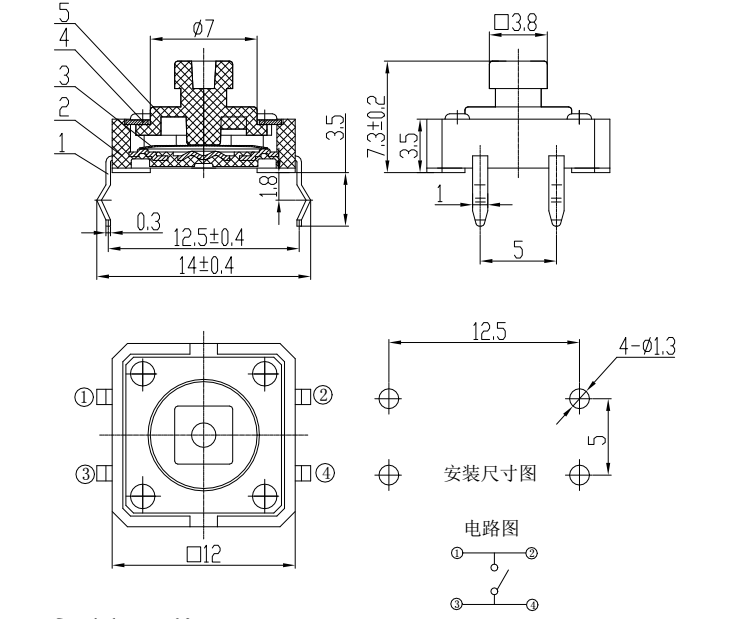

Dimension







Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.


Application

Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
