Home Switch Tactile switch 12 Series tact switch 12x12mm Plastic Cover pcb mount smd tactile switch

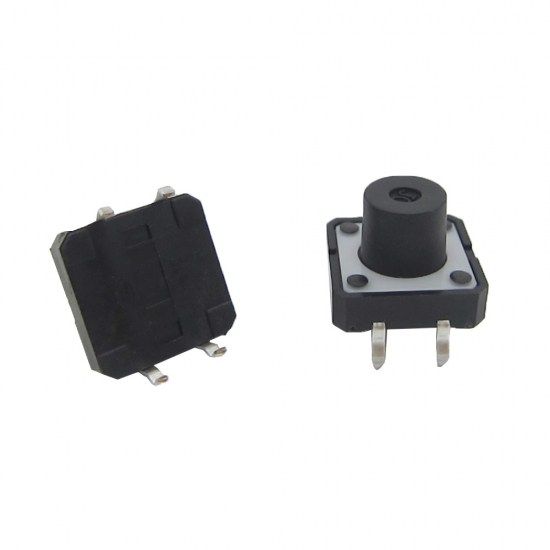

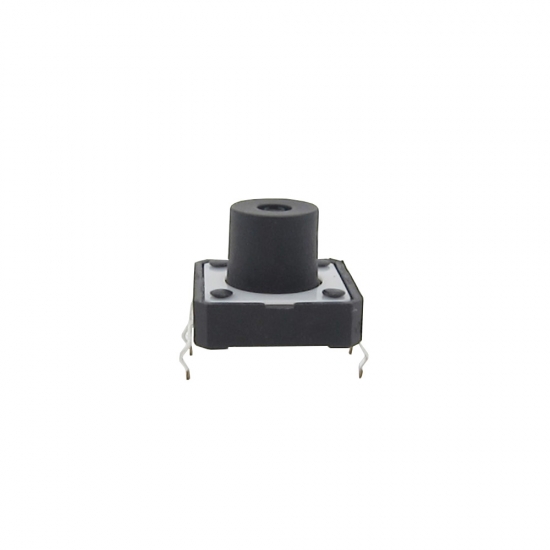

12x12mm Plastic Cover pcb mount smd tactile switch

12x12mm Plastic Cover pcb mount smd tactile switch, operation force 160-260gf,Dimension: 12x12mmx H( 4.3-18mm),Button Colour: Red or black for high quality selection.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1211-0901C-C
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3-5 Working Days after payment
  • Product Detail

12x12mm Plastic Cover pcb mount smd tactile switch

Features

Electrical rating:DC 12V 50mA max

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ  100V DC

Withstand voltage: 250V  AC  / 1 min

Operating Force:160±50gf -260gf

Return Force: ≥ 20gf

Operating Rate: 35%-75%

Full Travel:0.35±0.1mm

Dimension: 12x12mmx H( 4.3-18mm)

Button Colour: Red or black


Operation life
100,000/80,000 cycles Min
Salt Mist
35℃±2℃  8h±1h
Sulfuration  resistance
40±2℃  72h
Moisture  resistance
60±2℃   96h
Insulation Resistance
≥100MΩ
Contact resistance
≤50mΩ
Heat resistance
80±2℃  96h
Resistance to low temp
-30±2℃  96h
Return Force
0.4min
Press force
160 /260gf
Model Number
KAN1211-0901C-C
MOQ
1000

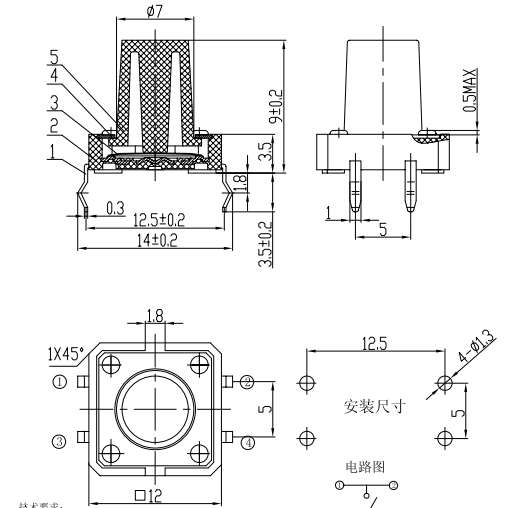

Dimension





Application

12*12 Plastic Cover pcb mount tactile switch electronic Tactile Switch, use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment, Industrial control.
