Home Switch Tactile switch 35 Series tact switch 12V DC 50mA Gangyuan Factory Black SMD Tact Switch

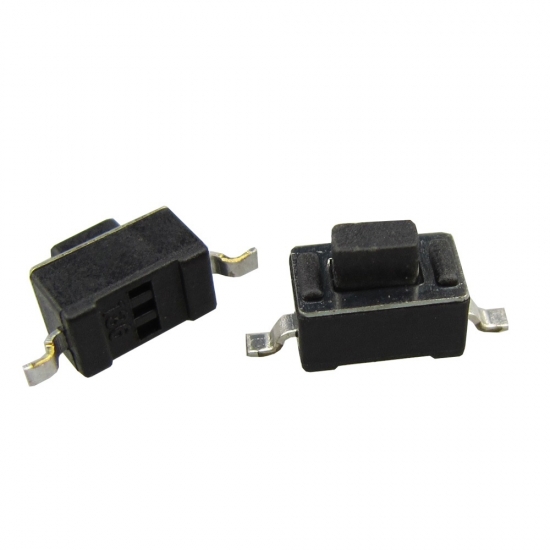

12V DC 50mA Gangyuan Factory Black SMD Tact Switch

KAN3542B-0501B: 6x3.5mm, 12VDC 50mA, SMD type tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3542B-0501B
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/Ningbo port
  • Lead Time:

    7-15working days
  • Product Detail

12V DC 50mA Gangyuan Factory Black SMD Tact Switch


Basic Information

                            P/N
AN3542B-0501B
Dimension
6x3.5mm
Height
4.3mm/5mm
Rating current
 12VDC 50mA
Operating force
160gf, 260gf(at customers request)
Life cycles
50,000/100,000cycles

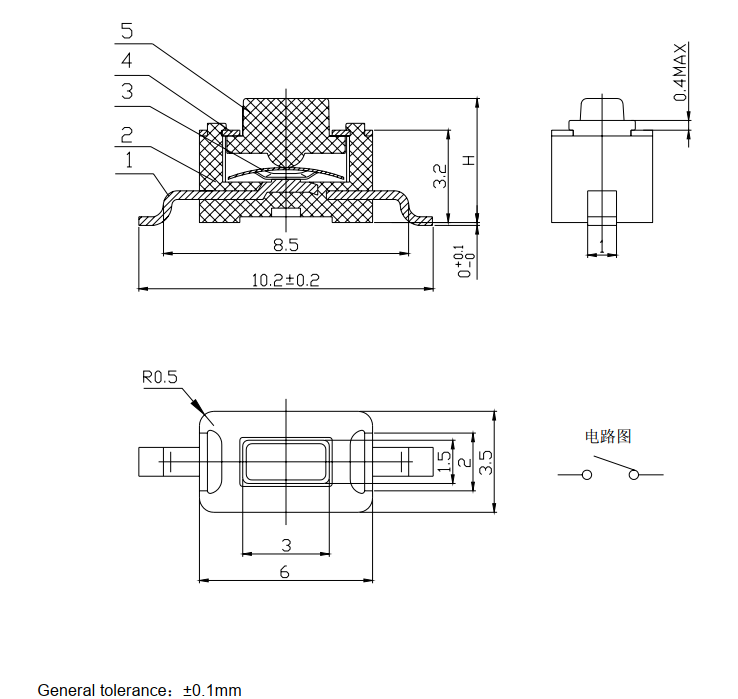

Outline Drawing



Our advantage
1. Experience of more then two decades in switch manufacturing.

2. Two thousands invention patents and 47 utility model patents.

3. Assembly process in 100,000 grade dust-free workshop.

4. Excellent R&D team, clients design requests are welcome.

5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Tact Switch Using Attention

1、Please consult us when considering to wash tact switches
2、Please don’t immerse soldering flux into tact switches
3、Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4、The second welding should be done after switches return to normal temperature



Appliance

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
