Home |Switch |Micro switch |12.8mm*5.8mm left and right terminal connect Micro switch micro tactile switch

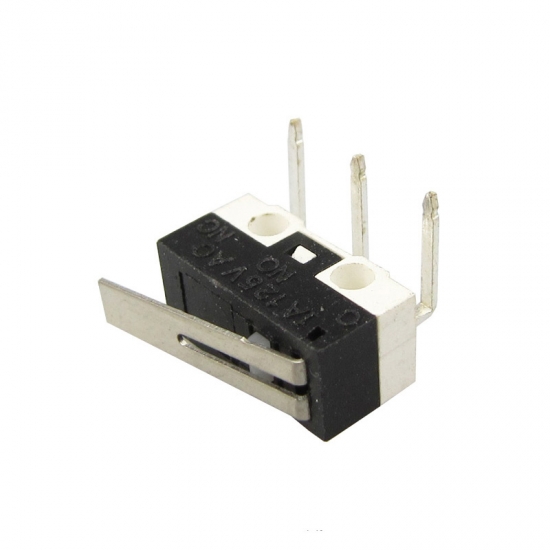

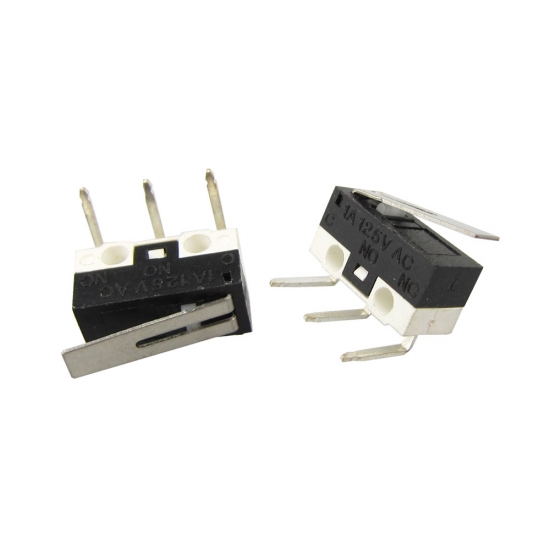

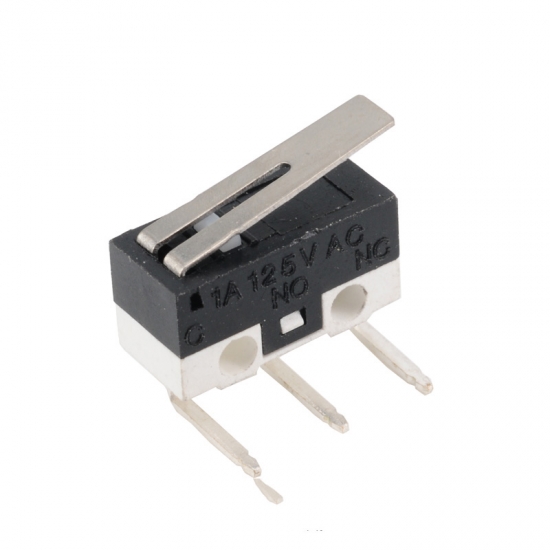

12.8mm*5.8mm left and right terminal connect Micro switch micro tactile switch

12.8mm*5.8mm left and right terminal connect Micro switch micro tactile switch,operation force 80±15gf -180±15gf, life time 500,000 times, can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.

  • Item No.:

    DMI-02CWL-30-3
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3 Working Days after payment
Product Details

Product Item: 12.8mm*5.8mm left and right terminal connect Micro switch micro tactile switch


Feature:

Product model: DMI-02CWL-30-3

Specification: 12.8mm*5.8mm

Operating force: 80±15gf -180±15gf

Features: left and right feet



Product Name: Micro Switch

Micro switch technical parameters:

Rated load: AC 125V 1A

Contact resistance: ≤100mΩ

Insulation resistance: AC 500V 1Minute

Operating temperature: -25°C+85°C

Operating force: 80±15gf

Mechanical life: 500,000 Cycles

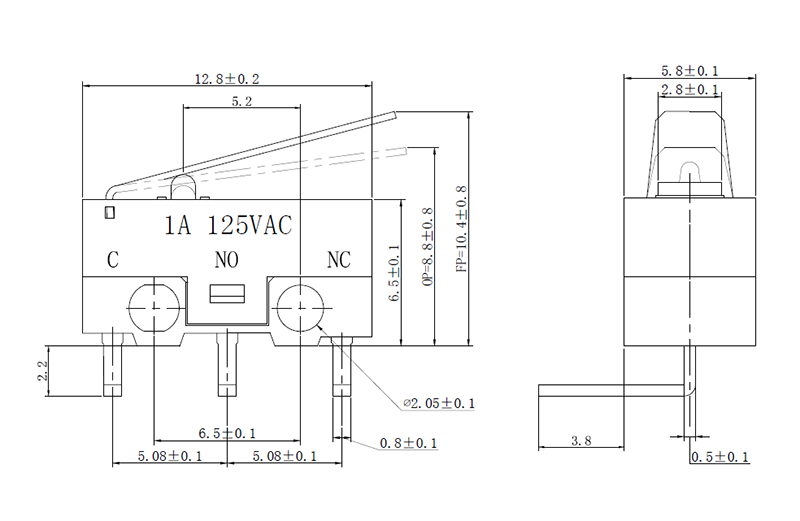

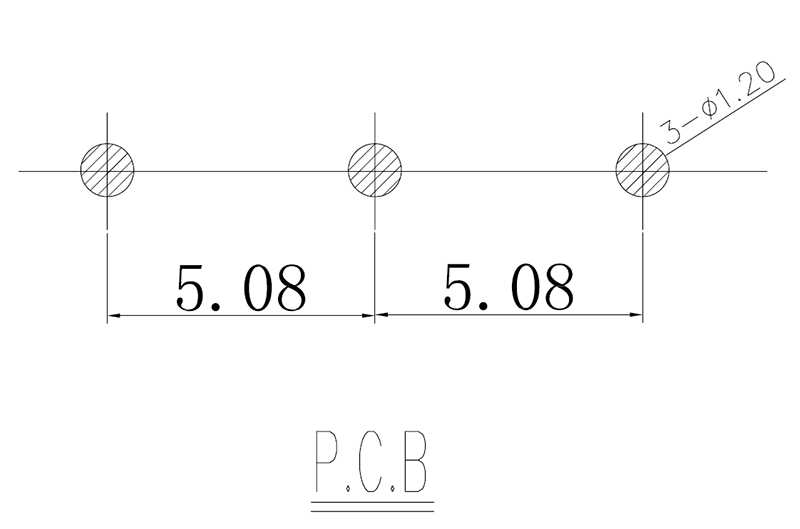

Dimension:

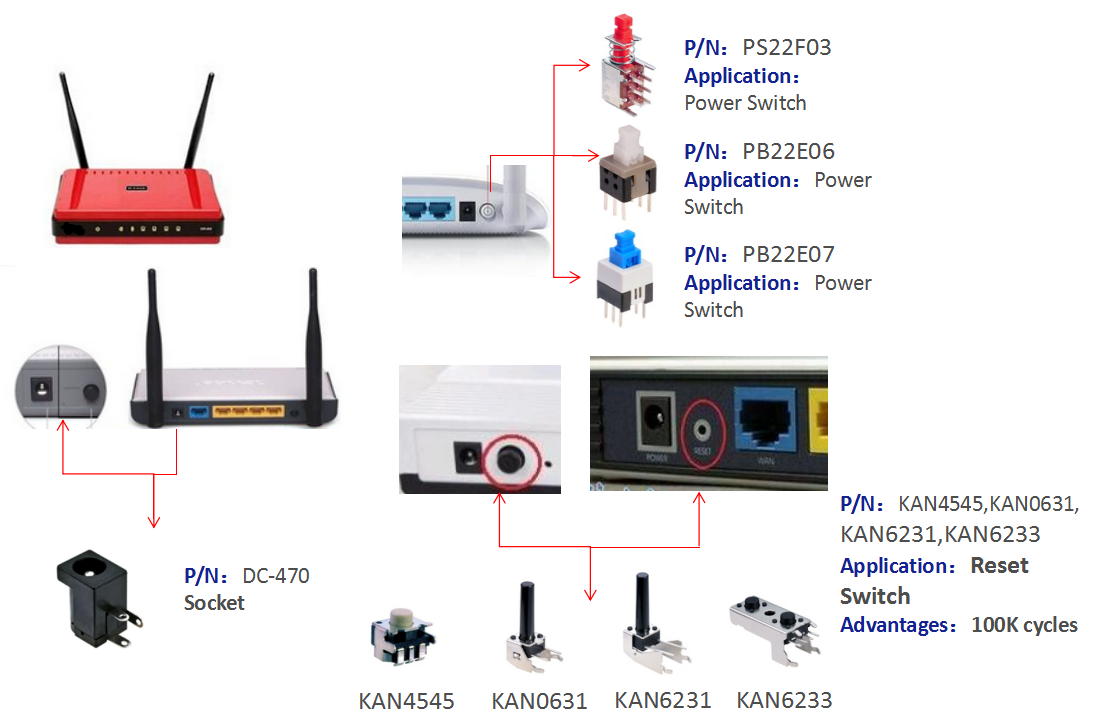

Application:

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
